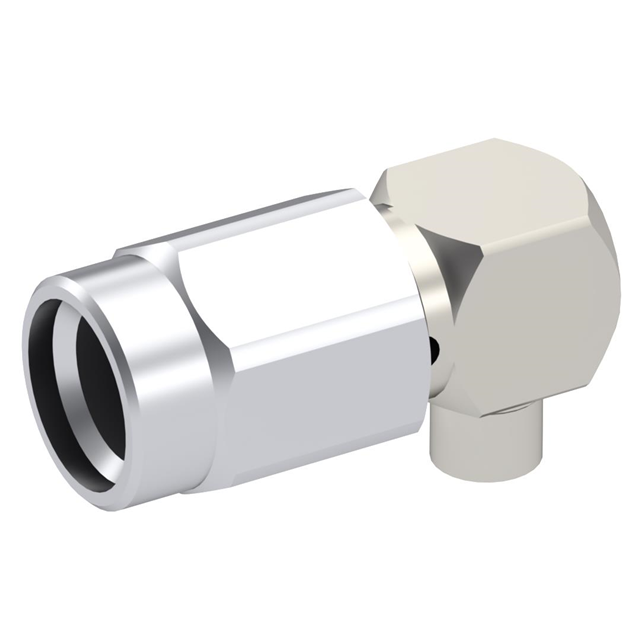

R121153000

Active

Radiall USA, Inc.

SSMA / RIGHT ANGLE PLUG SOLDER T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMA / RIGHT ANGLE PLUG SOLDER T

Technical Specifications

Parameters and characteristics for this part

Specification	R121153000

Body Finish	Nickel
Body Material	Brass, Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Center Contact Plating	Shield Termination	Dielectric Material	Mating Cycles	Center Contact Material	Cable Group	Contact Termination	Frequency - Max [Max]	Impedance	Number of Ports	Body Material	Connector Type	Connector Style	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Voltage Rating
Radiall USA, Inc. R121153000	Free Hanging (In-Line) Right Angle	Gold	Solder	Polytetrafluoroethylene (PTFE)	1000	Beryllium Copper	RG-405 (.085" Semi Rigid)	Solder	12.4 GHz	50 Ohms	1	Beryllium Copper Brass	Male Pin Plug	SSMA	Silver	115 °C	-65 ░C	Nickel	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 95.34

General part information

SSMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
