EVAL-KX022-1020

Obsolete

Kionix Inc.

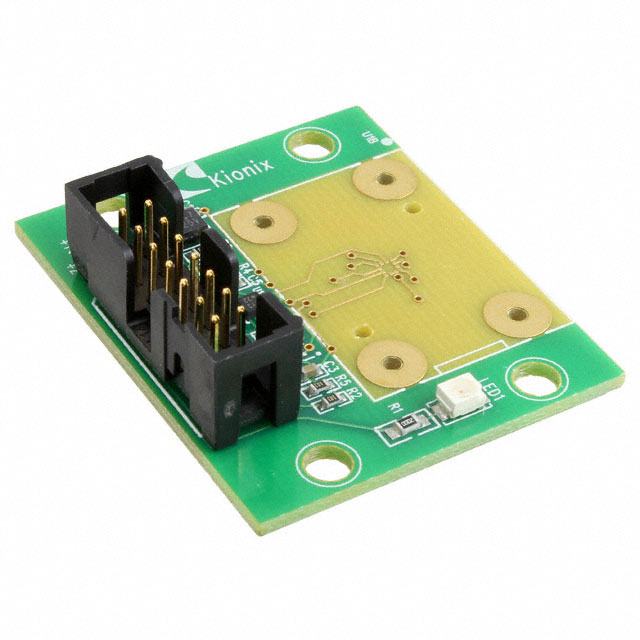

EVAL BOARD FOR KX022-1020

Search across all available documentation for this part.

Obsolete

Kionix Inc.

EVAL BOARD FOR KX022-1020

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

KX022-1020 - Accelerometer, 3 Axis Sensor Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	EVAL-KX022-1020	KX022 Series

Acceleration Range	-	4 - 8 g
Acceleration Range	-	-2 g
Acceleration Range	-	2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	0.39 Hz
Bandwidth	-	800 Hz
Embedded	False	False
Features	-	Adjustable Bandwidth, Selectable Scale
Interface	Serial, I2C, SPI	Serial, I2C, SPI
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	12-VFLGA
Sensing Range	2 g, 4 g, 8 g	2 - 8 g
Sensitivity (LSB/g)	-	4096 - 16384 LSB/g
Sensor Type	Accelerometer, 3 Axis	Accelerometer, 3 Axis
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	12-LGA (2x2)
Type	-	Digital
Utilized IC / Part	KX022-1020	KX022-1020
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.71 V	1.71 - 1.8 V

EVAL BOARD FOR KX022-1020

Part	Sensor Type	Utilized IC / Part	Sensing Range	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Supplied Contents	Supplier Device Package	Package / Case	Output Type	Type	Mounting Type	Axis [z]	Axis [y]	Axis [x]	Operating Temperature [Max]	Operating Temperature [Min]	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Features	Bandwidth [Min]	Bandwidth [Max]	Sensitivity (LSB/g)
Kionix Inc. EVAL-KX022-1020	Accelerometer, 3 Axis	KX022-1020	2 g, 4 g, 8 g	3.6 V	1.71 V	I2C, Serial, SPI	Board(s)
Kionix Inc. KX022-1020-PR				3.6 V	1.71 V			12-LGA (2x2)	12-VFLGA	I2C, SPI	Digital	Surface Mount	Z	Y	X	85 °C	-40 °C	4 g, 8 g	-2 g	2 g	Adjustable Bandwidth, Selectable Scale	0.39 Hz	800 Hz	4096 LSB/g, 16384 LSB/g
Kionix Inc. KX022-1020-FR				3.6 V	1.8 V			12-LGA (2x2)	12-VFLGA	I2C, SPI	Digital	Surface Mount	Z	Y	X	85 °C	-40 °C	4 g, 8 g	-2 g	2 g	Adjustable Bandwidth, Selectable Scale	0.39 Hz	800 Hz	4096 LSB/g, 16384 LSB/g
