FI4D006P9

FI4D006P9

Active

CBL FIBER OPTIC 125UM MULTIMODE

FI4D006P9

FI4D006P9

Active

CBL FIBER OPTIC 125UM MULTIMODE

Description Specifications Series Pricing CAD Documents

Description

General part information

FI4D006 Series

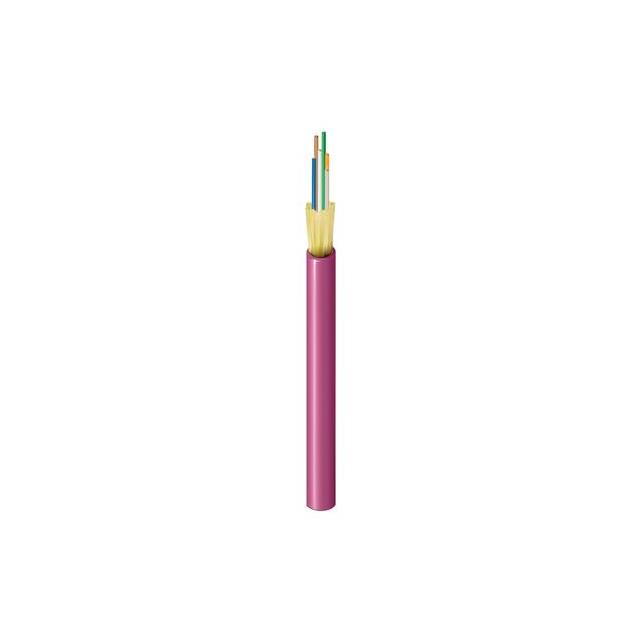

Fiber Optic Cable Violet Multimode 125µm

Technical Specifications

Parameters and characteristics for this part

Specification	FI4D006P9

Cladding Diameter	125 µm
Core Diameter	50 µm
Features	Rip Cord, 6 Fibers
Jacket (Insulation) Diameter	0.19 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Violet
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Ratings	OFNP
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Belden® Optical Fiber Catalog

FI4D006P9 | Datasheet

FI4D006 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Style	Jacket (Insulation) Diameter	Features	Jacket Color	Type	Ratings	Tensile Strength	Jacket (Insulation) Material	Cladding Diameter	Core Diameter
Belden Inc. FI4D006P9EBK
Belden Inc. FI4D006R9
Belden Inc. FI4D006P9A	70 °C	0 °C	Multiple Fibers	0.19 in	6 Fibers Rip Cord	Aqua	Multimode	OFNP	20.4 kg	Poly-Vinyl Chloride (PVC)	125 µm	50 µm
Belden Inc. FI4D006F9
Belden Inc. FI4D006R9A	70 °C	-20 °C	Multiple Fibers	0.22 in	6 Fibers Rip Cord	Aqua	Multimode	OFNR	20.4 kg	Poly-Vinyl Chloride (PVC)	125 µm	50 µm
Belden Inc. FI4D006P9	70 °C	0 °C	Multiple Fibers	0.19 in	6 Fibers Rip Cord	Violet	Multimode	OFNP	20.4 kg	Poly-Vinyl Chloride (PVC)	125 µm	50 µm
Belden Inc. FI4D006A9
