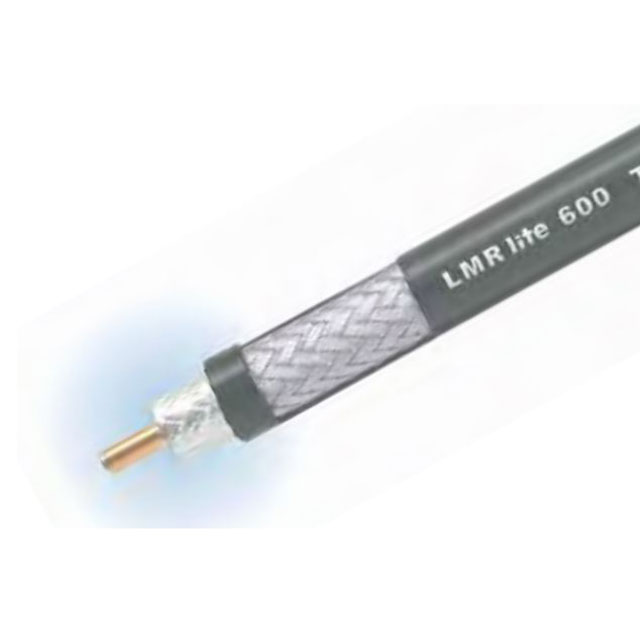

LMR-LW600

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUMINUM BRAID,

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-LW600

Cable Type	Coaxial
Conductor Material	Aluminum, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	11.56 mm
Dielectric Diameter [diameter]	0.455 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	14.99 mm
Jacket (Insulation) Diameter [diameter]	0.59 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	85

STANDARD CABLE, ALUMINUM BRAID,

Part	Conductor Strand	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Shield Material	Cable Type	Impedance	Shield Type	Jacket (Insulation) Material	Conductor Material	VoP, Velocity of Propagation
Amphenol Times Microwave Systems LMR-LW600	Solid	11.56 mm	0.455 in	Foam Polyethylene (FPE)	14.99 mm	0.59 in	85 °C	-40 °C	Black	Aluminum	Coaxial	50 Ohms	Braid	Polyethylene (PE)	Aluminum, Copper Coated	85

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 1.65

General part information

Coaxial Cable 50 Ohms
