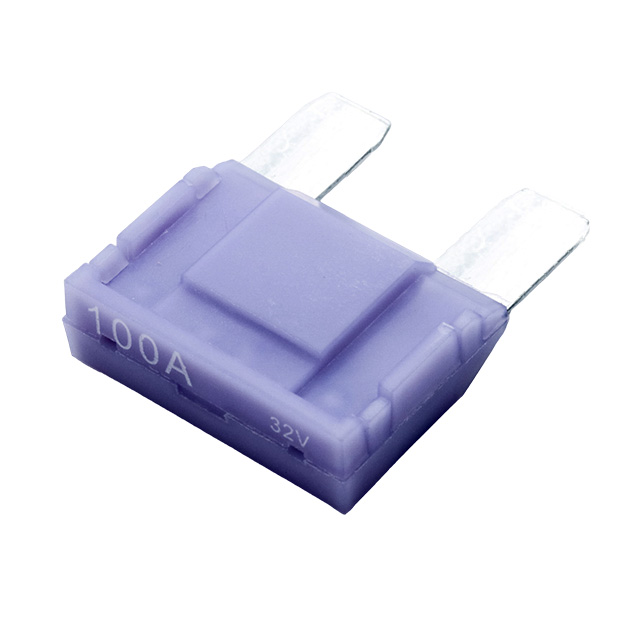

FUSE AUTO 100A 32VDC BLADE MAX

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 100A 32VDC BLADE MAX

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANX-I-100A	ANX-I Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Violet	Clear, Violet, Yellow, Red, Blue
Current Rating (Amps)	100 A	20 - 100 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Max	Blade, Max
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	1.142 inches	1.142 inches
Size / Dimension [x]	29 mm	29 mm
Size / Dimension [y]	0.35 "	0.35 "
Size / Dimension [y]	8.9 mm	8.9 mm
Size / Dimension [z]	0.85 "	0.85 "
Size / Dimension [z]	21.6 mm	21.6 mm
Voltage Rating - DC	32 V	32 V

FUSE AUTO 80A 32VDC BLADE MAX

Part	Color	Breaking Capacity @ Rated Voltage	Package / Case	Mounting Type	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Fuse Type	Voltage Rating - DC	Response Time	Current Rating (Amps)
OptiFuse ANX-I-80A	Clear	1 kA	Blade, Max	Requires Holder	ISO, SAE	0.85 "	21.6 mm	0.35 "	1.142 inches	29 mm	8.9 mm	Automotive	32 V	Fast Blow	80 A
OptiFuse ANX-I-100A	Violet	1 kA	Blade, Max	Requires Holder	ISO, SAE	0.85 "	21.6 mm	0.35 "	1.142 inches	29 mm	8.9 mm	Automotive	32 V	Fast Blow	100 A
OptiFuse ANX-I-20A	Yellow	1 kA	Blade, Max	Requires Holder	ISO, SAE	0.85 "	21.6 mm	0.35 "	1.142 inches	29 mm	8.9 mm	Automotive	32 V	Fast Blow	20 A
OptiFuse ANX-I-50A	Red	1 kA	Blade, Max	Requires Holder	ISO, SAE	0.85 "	21.6 mm	0.35 "	1.142 inches	29 mm	8.9 mm	Automotive	32 V	Fast Blow	50 A
OptiFuse ANX-I-60A	Blue	1 kA	Blade, Max	Requires Holder	ISO, SAE	0.85 "	21.6 mm	0.35 "	1.142 inches	29 mm	8.9 mm	Automotive	32 V	Fast Blow	60 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 A AC 32 V DC Fuse Automotive Requires Holder Blade, Max
