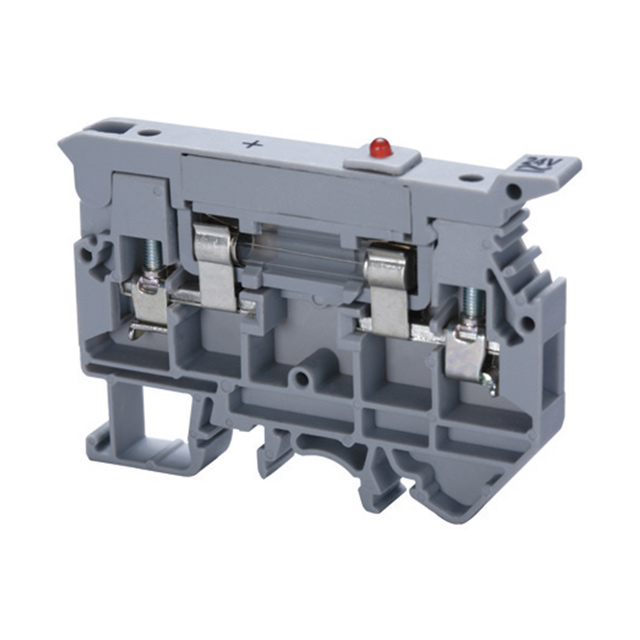

CAFL4U(L)/110

Active

Altech Corporation

DIN TERM BLK, SCREW, FUSE 1/4X1", LED 110V

Search across all available documentation for this part.

Active

Altech Corporation

DIN TERM BLK, SCREW, FUSE 1/4X1", LED 110V

Technical Specifications

Parameters and characteristics commom to parts in this series

DIN TERM BLK, SCREW, FUSE 1/4X1", LED 110V

Part	Voltage - UL	Voltage - IEC	Number of Positions	Features	Stripping Length	Color	Material - Insulation	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Current - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Disconnect Type	Fuse Type [x]	Fuse Type [y]	Current - IEC	Type	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Altech Corporation CAFL4U(L)/110	600 V	1 kV	2	Diode, LED	9.5 mm	Gray	Polyamide (PA66), Nylon 6/6	9 mm	22 AWG	10 AWG	Screw	16 A	0.2 mm˛	4 mm˛	Fuse, Lever	6.3 mm	32 mm	6.3 A	Disconnect	1
Altech Corporation CAFL4U(L)/24/R	600 V	1 kV	2	LED Indicator	9.5 mm	Red	Polyamide (PA66), Nylon 6/6	9 mm	22 AWG	10 AWG	Screw	16 A	0.2 mm˛	4 mm˛	Fuse, Lever	1 in	0.25 in	6.3 A	Disconnect	1
Altech Corporation CAFL4U(L)/48	600 V	1 kV	2	LED Indicator	9.5 mm	Gray	Polyamide (PA66), Nylon 6/6	9 mm	22 AWG	10 AWG	Screw	16 A	0.2 mm˛	4 mm˛	Fuse, Lever	1 in	0.25 in	6.3 A	Disconnect	1
Altech Corporation CAFL4U(L)/220	600 V	1 kV	2	LED Indicator	9.5 mm	Gray	Polyamide (PA66), Nylon 6/6	9 mm	22 AWG	10 AWG	Screw	16 A			Fuse, Lever	1 in	0.25 in	6.3 A	Disconnect	1	0.2 mm²	4 mm²
Altech Corporation CAFL4U(L)/24	600 V	1 kV	2	Diode, LED	9.5 mm	Gray	Polyamide (PA66), Nylon 6/6	9 mm	22 AWG	10 AWG	Screw	16 A	0.2 mm˛	4 mm˛	Fuse, Lever	6.3 mm	32 mm	6.3 A	Disconnect	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Disconnect Gray 10-22 AWG
