M3EEK-1036R

Active

IDC CABLE - MCE10K/MC10M/MCE10K

Search across all available documentation for this part.

Active

IDC CABLE - MCE10K/MC10M/MCE10K

Technical Specifications

Parameters and characteristics commom to parts in this series

IDC CABLE - MCE10K/MC10G/MCE10K

Part	Length [x]	Length [x]	Cable Termination	Connector Type	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Rows	Number of Positions	Color	Length	Length	Length
3M M3EEK-1036J	3 ft	914.4 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10
3M M3EEK-6418J	1.5 ft	457.2 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	64
3M M3EEK-1036R	3 ft	914.4 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10	Multiple, Ribbon
3M M3EEK-1018R	1.5 ft	457.2 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10	Multiple, Ribbon
3M M3EEK-1006R			IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10	Multiple, Ribbon	152.4 mm	6 "	0.5 '
3M M3EEK-2036J	3 ft	914.4 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	20
3M M3EEK-1018J	1.5 ft	457.2 mm	IDC	Card Edge to Card Edge	Unshielded	0.76 Ám	30 Áin	Gold	0.1 in	2.54 mm	0.05 "	1.27 mm	2	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

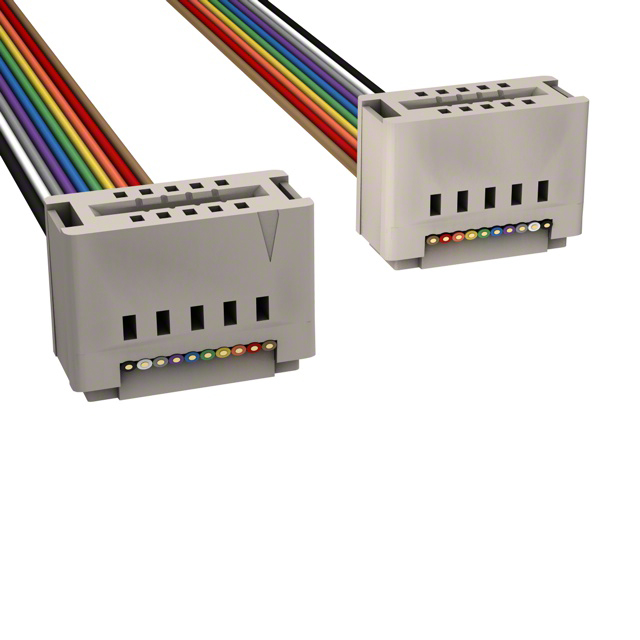

10 Position Cable Assembly Rectangular Card Edge to Card Edge 3.00' (914.40mm)

Technical documentation and resources
