General part information
Circular Push Pull Connectors
Technical documentation and resources
Parameters and characteristics for this part

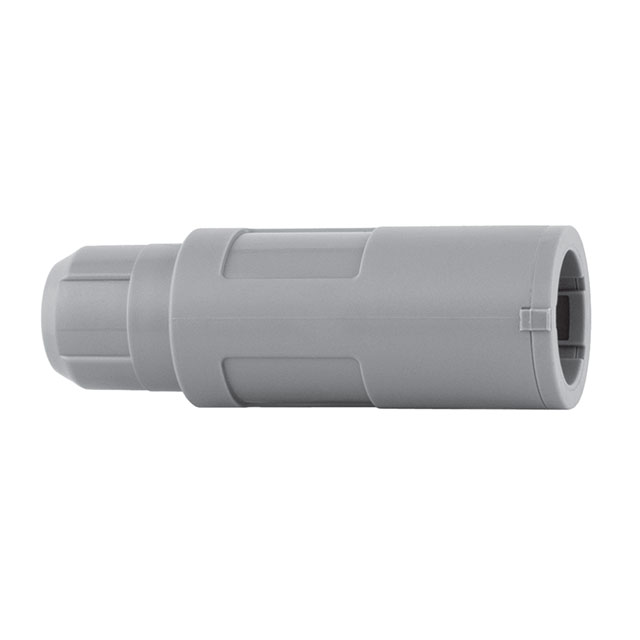

| Specification | CRB.H02.GLL.C72G |
|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Cable Opening [custom] | 5.3 mm, 7.2 mm |
| Cable Opening [custom] | 0.209 in, 0.283 in |
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 11 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | B |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | H-2 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
Circular Push Pull Connectors
| Part | Insert Material | Cable Opening [custom] | Cable Opening [custom] | Features | Ingress Protection | Voltage Rating | Current Rating (Amps) | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Fastening Type | Applications | Number of Positions | Connector Type | Material Flammability Rating | Shielding | Shell Material | Orientation | Shell Size - Insert | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO CRB.H02.GLL.C72G | Polyetheretherketone (PEEK) | 5.3 mm, 7.2 mm | 0.209 in, 0.283 in | Backshell | IP50 | 250 VDC | 11 A | Gray | 150 °C | -50 °C | Gold | Detent Lock, Push-Pull | Automotive, Industrial, Medical, Testing Equipment & Measurement | 2 | Receptacle, Female Sockets | UL94 V-0 | Unshielded | Polysulfone (PSU) | B | H-2 | Free Hanging (In-Line) |
