GI-9DL-CCT100-ES4

Active

Green Ignite Inc

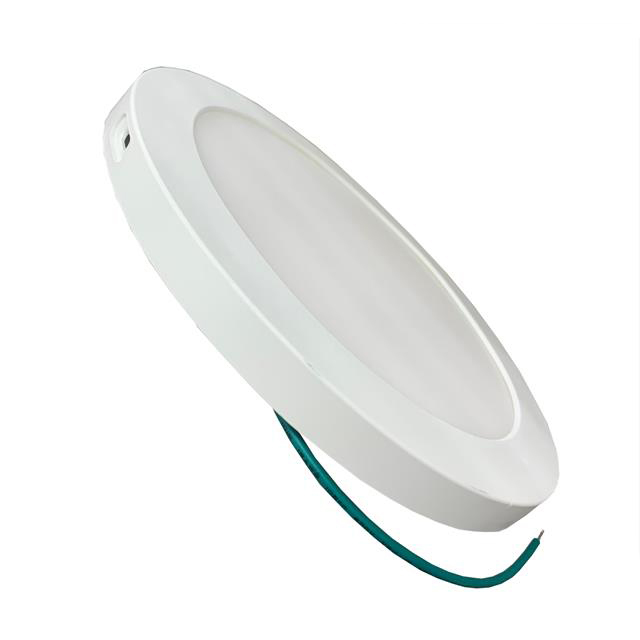

LED MOD WHITE ROUND 5000K

Search across all available documentation for this part.

Active

Green Ignite Inc

LED MOD WHITE ROUND 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	GI-9DL-CCT100-ES4

CCT (K)	5000K, 4000K, 3000K
Color	White, Neutral, White, Cool, White, Warm
Configuration	Plug and Play, Round
CRI (Color Rendering Index)	80
Features	Dimming - TRIAC
Height [z]	12.7 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	85 lm/W
Luminous Flux @ Current/Temperature	1530 lm
Size / Dimension [diameter]	228.6 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	120 V

LED MOD WHITE ROUND 5000K

Part	Color	Voltage - Forward (Vf) (Typ)	Lens Type	Viewing Angle	Type	CCT (K)	Configuration	Luminous Flux @ Current/Temperature	Height [z]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Features	Size / Dimension [diameter]
Green Ignite Inc GI-9DL-CCT100-ES4	White, Cool, White, Neutral, White, Warm	120 V	Flat	120 °	LED Module	3000K, 4000K, 5000K	Plug and Play, Round	1530 lm	12.7 mm	85 lm/W	80	Dimming - TRIAC	228.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.43

General part information

LED Lighting COBs Engines Modules LED Module - White, Warm / White, Neutral / White, Cool Round, Plug and Play

Technical documentation and resources

No documents available
