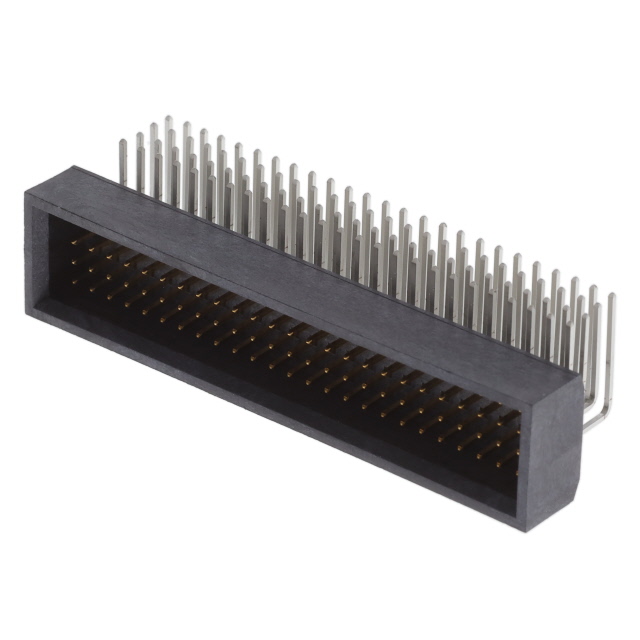

TMMS-125-01-S-Q-RA-FS

Active

Samtec Inc.

2.00 MM FULLY SHROUDED QUAD ROW

Deep-Dive with AI

Search across all available documentation for this part.

Documents2.00 mm Fully Shrouded Quad Row Terminal Strip 2.00 mm Shrouded Terminal Strip +2

TMMS-125-01-S-Q-RA-FS

Active

Samtec Inc.

2.00 MM FULLY SHROUDED QUAD ROW

Deep-Dive with AI

Documents2.00 mm Fully Shrouded Quad Row Terminal Strip 2.00 mm Shrouded Terminal Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMS-125-01-S-Q-RA-FS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	12.07 mm
Insulation Height [z]	0.475 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	100
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

TMMS-125 Series

Part	Contact Length - Mating	Contact Length - Mating	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Contact Finish - Mating	Fastening Type	Insulation Height	Insulation Height [z]	Contact Finish - Post	Contact Material	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Positions Loaded	Insulation Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Contact Type	Overall Contact Length	Overall Contact Length	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TMMS-125-01-L-Q-RA	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole Right Angle	Gold	Push-Pull	12.07 mm	0.475 in	Tin	Phosphor Bronze	0.09 "	2.29 mm	UL94 V-0	10 çin	0.25 çm	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin
Samtec Inc. TMMS-125-01-S-Q-FS	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole	Gold	Push-Pull	7.6 mm		Tin	Phosphor Bronze	0.113 in	2.87 mm	UL94 V-0	30 Áin	0.76 Ám	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin	0.302 in	7.67 mm	0.299 in
Samtec Inc. TMMS-125-01-G-Q	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole	Gold	Push-Pull	7.6 mm		Gold	Phosphor Bronze	0.113 in	2.87 mm	UL94 V-0	10 çin	0.25 çm	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin	0.302 in	7.67 mm	0.299 in	10 çin	0.25 çm
Samtec Inc. TMMS-125-01-L-Q	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole	Gold	Push-Pull	7.6 mm		Tin	Phosphor Bronze	0.113 in	2.87 mm	UL94 V-0	10 çin	0.25 çm	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin	0.302 in	7.67 mm	0.299 in
Samtec Inc. TMMS-125-01-F-Q	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole	Gold	Push-Pull	7.6 mm		Tin	Phosphor Bronze	0.113 in	2.87 mm	UL94 V-0	3 µin	0.076 µm	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin	0.302 in	7.67 mm	0.299 in
Samtec Inc. TMMS-125-01-G-Q-RA	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole Right Angle	Gold	Push-Pull	12.07 mm	0.475 in	Gold	Phosphor Bronze	0.09 "	2.29 mm	UL94 V-0	10 çin	0.25 çm	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin				10 çin	0.25 çm
Samtec Inc. TMMS-125-01-G-Q-RA-FS	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole Right Angle	Gold	Push-Pull	12.07 mm	0.475 in	Gold	Phosphor Bronze	0.09 "	2.29 mm	UL94 V-0	10 çin	0.25 çm	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin				10 çin	0.25 çm
Samtec Inc. TMMS-125-01-S-Q-RA	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole Right Angle	Gold	Push-Pull	12.07 mm	0.475 in	Tin	Phosphor Bronze	0.09 "	2.29 mm	UL94 V-0	30 Áin	0.76 Ám	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin
Samtec Inc. TMMS-125-01-S-Q-RA-FS	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole Right Angle	Gold	Push-Pull	12.07 mm	0.475 in	Tin	Phosphor Bronze	0.09 "	2.29 mm	UL94 V-0	30 Áin	0.76 Ám	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin
Samtec Inc. TMMS-125-01-G-Q-FS	0.13 in	3.3 mm	Square	0.079 in	2 mm	Through Hole	Gold	Push-Pull	7.6 mm		Gold	Phosphor Bronze	0.113 in	2.87 mm	UL94 V-0	10 çin	0.25 çm	Black	0.079 in	2 mm	Shrouded - 4 Wall	All	Liquid Crystal Polymer (LCP)	Header	-55 °C	125 °C	100	Solder	Male Pin	0.302 in	7.67 mm	0.299 in	10 çin	0.25 çm
