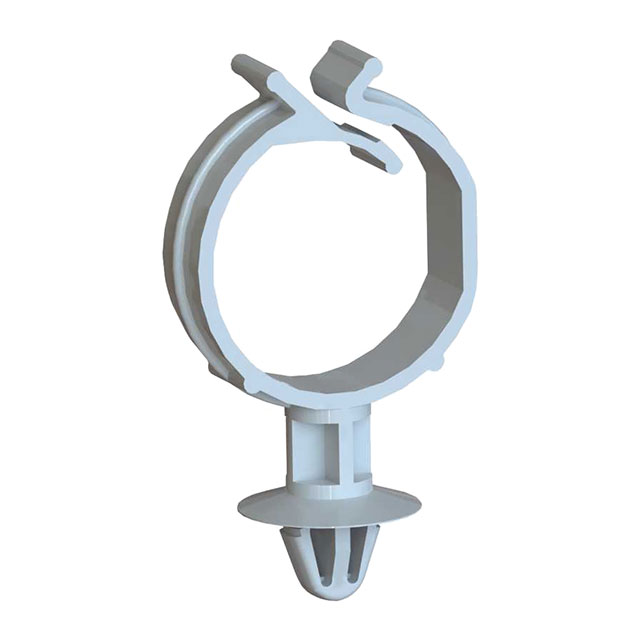

Specification	SCCB-2-19

Color	Natural
Features	Flame Retardant
Height	1.31 in
Material	Nylon 6, 6, Polyamide (PA66)
Material Flammability Rating	UL94 V-0
Mounting Type	Arrowhead, Winged
Opening Size	0.866 in
Panel Hole Size (Max)	0.276 in
Panel Hole Size (Min)	0.256 in
Panel Thickness (Max)	0.079 in
Panel Thickness (Min)	0.024 in
Type	Clip, Wire Saddle
Type Attributes	Flat Side, Standoff
Width	0.31 in

SCCB-2 Series

Part	Panel Thickness (Min)	Panel Thickness (Max)	Type	Color	Height	Mounting Type	Panel Hole Size (Min)	Panel Hole Size (Max)	Features	Material	Type Attributes	Width	Opening Size	Material Flammability Rating
Essentra Components SCCB-2-19	0.024 in	0.079 in	Clip Wire Saddle	Natural	1.31 in	Arrowhead Winged	0.256 in	0.276 in	Flame Retardant	6 Nylon 6 Polyamide (PA66)	Flat Side Standoff	0.31 in	0.866 in	UL94 V-0
