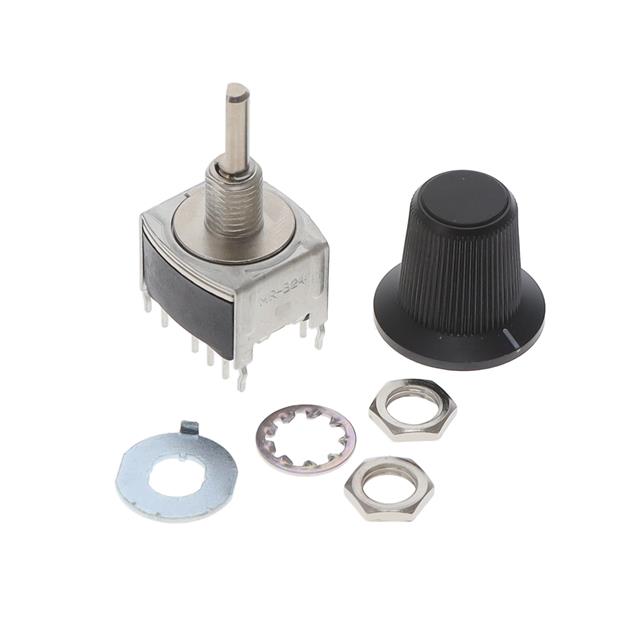

MRB24B-CA
ActiveNKK Switches
SWITCH ROTARY 3POS 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRB24B-CA
ActiveNKK Switches
SWITCH ROTARY 3POS 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRB24B-CA |
|---|---|
| Actuator Length [x] | 15.8 mm |
| Actuator Type | Knob |
| Angle of Throw | 45 ° |
| Circuit per Deck | DP3T |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 0.4 VA |
| Depth Behind Panel [z] | 11 mm |
| Features | Sealed - Fully |
| Index Stops | Fixed |
| Mounting Type | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.32 | |
| 5 | $ 16.60 | |||
| 10 | $ 15.55 | |||
| 25 | $ 14.26 | |||
| 50 | $ 13.35 | |||
| 100 | $ 12.52 | |||
| 250 | $ 11.48 | |||
| 500 | $ 11.27 | |||
Description
General part information
MRB24B Series
Rotary Switch 3 Position DP3T 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole
