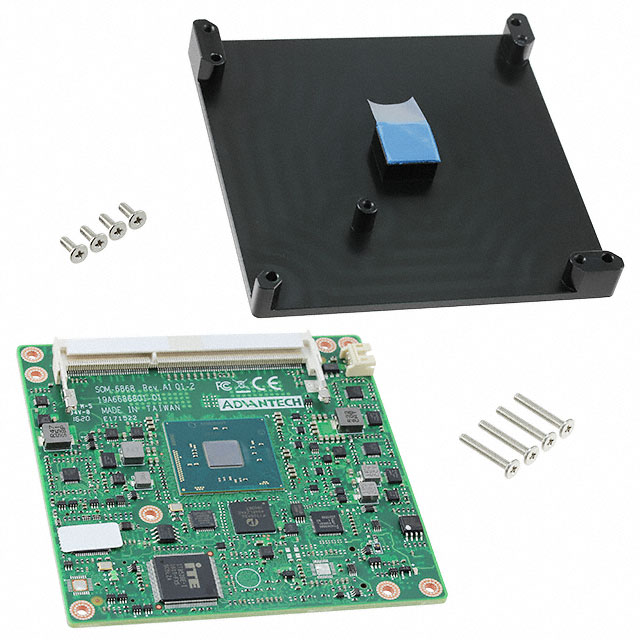

SOM-6868RC-S0A1E

Active

Advantech Corp

SBC 2.24GHZ 2 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 2.24GHZ 2 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-6868RC-S0A1E

Core Processor	Intel Celeron N3010
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	Audio, PCIe, LPC
Form Factor	COM Express 2.1
Number of Cores	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	4 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	2
Size / Dimension [x]	3.74 "
Size / Dimension [x]	94.99 mm
Size / Dimension [y]	3.74 "
Size / Dimension [y]	94.99 mm
Speed	2.24 GHz
Storage Interface	SATA3
USB	USB 3.0 (4), USB 2.0 (8)
Video Outputs	DDI, LCD, Multi-Display
Watchdog Timer	True

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	USB	Expansion Site/Bus	Ethernet	Watchdog Timer	Core Processor	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Power (Watts)	Form Factor	Speed	RS-232 (422, 485)	Video Outputs	Storage Interface	Digital I/O Lines
Advantech Corp SOM-6868RC-S0A1E	60 °C	0 °C	2	3.74 "	3.74 "	94.99 mm	94.99 mm	USB 2.0 (8) USB 3.0 (4)	Audio LPC PCIe	10 Mbps 100 Mbps 1000 Mbps		Intel Celeron N3010	8 GB	0 GB	4 W	COM Express 2.1	2.24 GHz	2	DDI LCD Multi-Display	SATA3	8
Advantech Corp SOM-6868RC-S5A1E	60 °C	0 °C	2	3.74 "	3.74 "	94.99 mm	94.99 mm	USB 2.0 (8) USB 3.0 (4)	Audio LPC PCIe	10 Mbps 100 Mbps 1000 Mbps		Intel Celeron N3060	8 GB	0 GB	6 W	COM Express 2.1	2.48 GHz	2	DDI LCD Multi-Display	SATA3	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 2.24GHz 2 Core 8GB/0GB RAM Intel Celeron N3010
