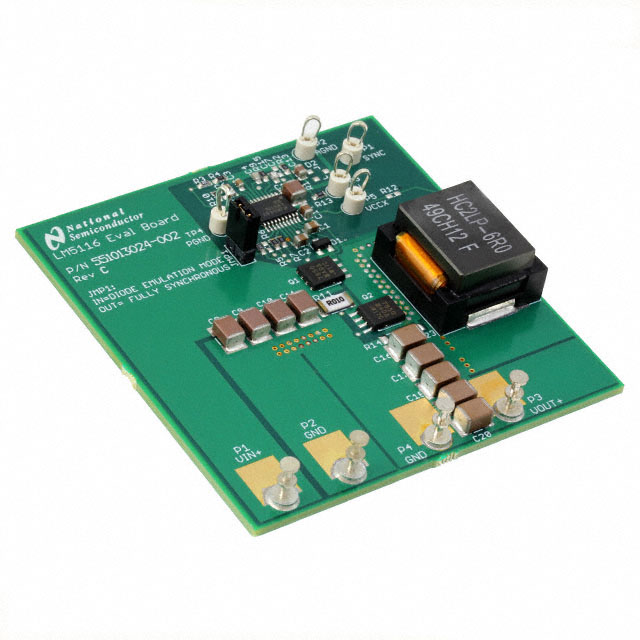

LM5116EVAL/NOPB
ActiveTexas Instruments
BOARD EVALUATION LM5116
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM5116EVAL/NOPB
ActiveTexas Instruments
BOARD EVALUATION LM5116
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LM5116EVAL/NOPB | LM5116 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated, Bare (Unpopulated) |
| Clock Sync | - | True |
| Control Features | - | Frequency Control, Enable, Soft Start, Ramp |
| Current - Output | 7 A | 5 - 20 A |
| Frequency - Switching | 250 kHz | 200 - 535 kHz |
| Function | - | Step-Down |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount, Through Hole |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 - 175 ¯C |
| Operating Temperature | - | -55 - -40 °C |
| Output Configuration | - | Positive |
| Output Phases | - | 1 |
| Output Type | - | Transistor Driver |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 0.173 in |
| Package / Case | - | 20-PowerTSSOP, 20-CSOIC, 20-CDIP, Window |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.275 - 7 in |
| Package / Case | - | 7.62 mm |
| Package / Case | - | 0.3 in |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-HTSSOP, 20-CFP, 20-CDIP |
| Synchronous Rectifier | - | True |
| Topology | - | Buck |
| Utilized IC / Part | LM5116 | LM5116 |
| Voltage - Input [Max] | 60 V | 60 - 100 V |
| Voltage - Input [Min] | 7 V | 7 - 15 V |
| Voltage - Output | 5 V | 5 - 12 V |
| Voltage - Supply (Vcc/Vdd) | - | 80 - 100 V |
| Voltage - Supply (Vcc/Vdd) | - | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
LM5116 Series
BOARD EVALUATION FOR LM5116-12
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Voltage - Output | Main Purpose | Frequency - Switching | Board Type | Utilized IC / Part | Current - Output | Outputs and Type | Outputs and Type | Topology | Control Features | Package / Case [custom] | Package / Case | Package / Case [custom] | Clock Sync | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Number of Outputs | Synchronous Rectifier | Output Phases | Output Configuration | Mounting Type | Supplier Device Package | Function | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LM5116-12EVAL | 15 V | 80 V | Board(s) | 12 V | DC/DC, Step Down | 250 kHz | Fully Populated | LM5116 | 5 A | Non-Isolated | 1 | |||||||||||||||||||||
Texas Instruments LM5116MH | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116EVAL/NOPB | 7 V | 60 V | Board(s) | 5 V | DC/DC, Step Down | 250 kHz | Fully Populated | LM5116 | 7 A | Non-Isolated | 1 | |||||||||||||||||||||
Texas Instruments LM5116MH/NOPB | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116MHX | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116BUCKEVM-BLDT | 7 V | 100 V | Board(s) | DC/DC, Step Down | Bare (Unpopulated) | LM5116 | 20 A | Non-Isolated | 1 | |||||||||||||||||||||||
Texas Instruments LM5116WG/NOPB | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 20-CSOIC | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-CFP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | 0.275 in, 7 mm | ||||||||||||||||
Texas Instruments LM5116MHX/NOPB | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 0.173 in | 20-PowerTSSOP | 4.4 mm | 100 V | 6 V | 1 | 1 | Positive | Surface Mount | 20-HTSSOP | Step-Down | Transistor Driver | 125 ¯C | -40 °C | |||||||||||||||
Texas Instruments LM5116-12EVAL/NOPB | 15 V | 80 V | Board(s) | 12 V | DC/DC, Step Down | 250 kHz | Fully Populated | LM5116 | 5 A | Non-Isolated | 1 | |||||||||||||||||||||
Texas Instruments LM5116HJD | 200 kHz, 535 kHz | Buck | Enable, Frequency Control, Ramp, Soft Start | 20-CDIP, Window | 80 V | 6 V | 1 | 1 | Positive | Through Hole | 20-CDIP | Step-Down | Transistor Driver | 175 ░C | -55 °C | 7.62 mm | 0.3 in |
Description
General part information
LM5116 Series
LM5116 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
