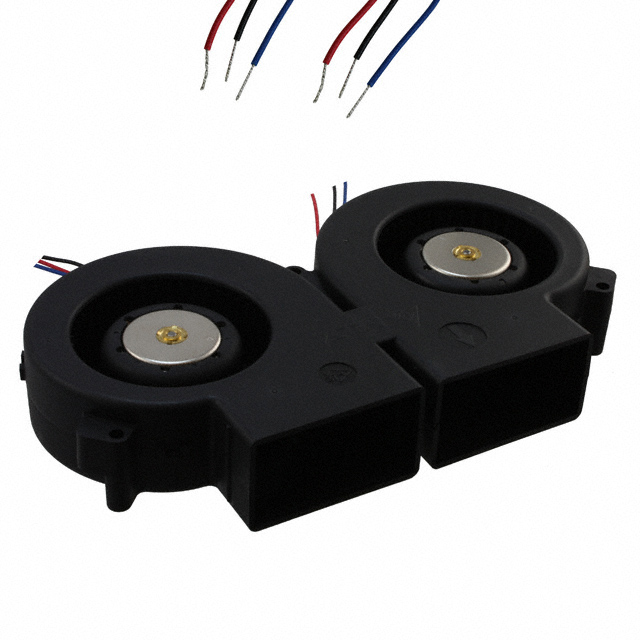

SFB0412VH-F00

Active

Delta Electronics

FAN BLOWER CF 196X33MM 12VDC

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER CF 196X33MM 12VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal (Dual) 12VDC Rectangular/Rounded - 196mm L x 109mm H Ball 91.0 CFM (2.55m³/min) 3 Wire Leads

Technical documentation and resources

Part	Air Flow	Air Flow	Fan Type	Voltage - Rated	Current Rating (Amps)	Static Pressure	Static Pressure	Termination	Material - Frame	Weight	Weight	Approval Agency	Width [y]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	RPM	Bearing Type	Material - Blade	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Noise	Features
Delta Electronics SFB0412VH	91 CFM	2.55 mł/min	Blower, Centrifugal (Dual)	12 VDC	4.6 A	671.1 Pa	2.694 in H2O	2 Wire Leads	Plastic	0.849 lb	385.1 g	CE, CSA, UL, VDE	33 mm	50000 Hrs	-10 °C	-10 °C	60 °C	60 °C	5300 RPM	Ball	Plastic	109 mm	196 mm	Rectangular/Rounded	7 V	12.6 VDC	55.2 W	67 dB
Delta Electronics SFB0412VH-F00	91 CFM	2.55 mł/min	Blower, Centrifugal (Dual)	12 VDC	4.6 A	671.1 Pa	2.694 in H2O	3 Wire Leads	Plastic	0.849 lb	385.1 g	CE, CSA, UL, VDE	33 mm	50000 Hrs	-10 °C	-10 °C	60 °C	60 °C	5300 RPM	Ball	Plastic	109 mm	196 mm	Rectangular/Rounded	7 V	12.6 VDC	55.2 W	67 dB	Speed Sensor (Tach)
