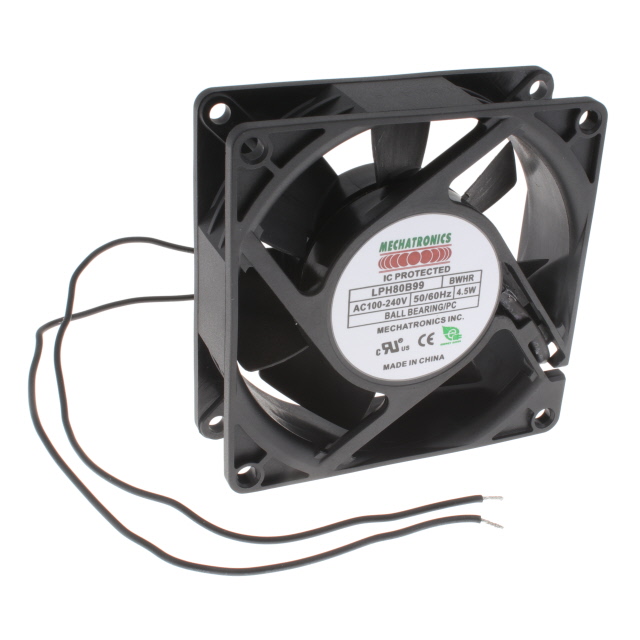

LPH80B99-BWHR-PC

Active

Mechatronics Fan Group

EC FAN AXIAL 80 X 80 X 25MM W/PA

Search across all available documentation for this part.

Active

Mechatronics Fan Group

EC FAN AXIAL 80 X 80 X 25MM W/PA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 80mm L x 80mm H Ball 39.0 CFM (1.09m³/min) 2 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LPH80B99-BWHR-PC	LPH80 Series

Air Flow	1.09 m³/min	0.896 - 1.09 m³/min
Air Flow	39 CFM	32 - 39 CFM
Approval Agency	-	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	60 mA	50 - 60 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Electronic Commutation (EC), Parylene Coating, Auto Restart	Electronic Commutation (EC), Parylene Coating, Auto Restart
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	-	50000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	31 dB(A)	27 - 31 dB(A)
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-40 °C
Operating Temperature	-	-40 °C
Power (Watts)	4.5 W	2.4 - 4.5 W
RPM	3500 RPM	3000 - 3500 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	0.25 in H2O	0.17 - 0.25 in H2O
Static Pressure	62.3 Pa	42.3 - 62.3 Pa
Termination	2 Wire Leads	2 Wire Leads, 2 Terminals
Voltage - Rated [Max]	240 VAC	240 VAC
Voltage - Rated [Min]	100 VAC	100 VAC
Voltage Range [Max]	264 VAC	264 VAC
Voltage Range [Min]	90 VAC	90 VAC
Weight	94.89 g	94.89 g
Weight	0.209 lb	0.209 lb
Width [x]	25.5 mm	25.5 mm

EC FAN AXIAL 80 X 80 X 25MM W/PA

Part	Features	Termination	Width [x]	RPM	Noise	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Material - Blade	Air Flow	Air Flow	Current Rating (Amps)	Fan Type	Material - Frame	Power (Watts)	Voltage - Rated [Min]	Voltage - Rated [Max]	Bearing Type	Approval Agency	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Mechatronics Fan Group LPH80B99-BWHR-PC	Auto Restart, Electronic Commutation (EC), Parylene Coating	2 Wire Leads	25.5 mm	3500 RPM	31 dB(A)	90 VAC	264 VAC	IP55 - Dust Protected, Water Resistant	94.89 g	0.209 lb	80 mm	80 mm	0.25 in H2O	62.3 Pa	Plastic	1.09 m³/min	39 CFM	60 mA	Tubeaxial	Plastic	4.5 W	100 VAC	240 VAC	Ball
Mechatronics Fan Group LPH80B99-BTMR	Auto Restart, Electronic Commutation (EC)	2 Terminals	25.5 mm	3000 RPM	27 dB(A)	90 VAC	264 VAC				80 mm	80 mm	0.17 in H2O	42.3 Pa	Plastic	0.896 m³/min	32 CFM	50 mA	Tubeaxial	Plastic	2.4 W	100 VAC	240 VAC	Ball	CE, cUL, TUV, UL	50000 Hrs	70 °C	70 °C	-40 °C	-40 °C
