Specification	0350230009

Color	Natural
Connector Type	Board-In
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Through Hole, Right Angle
Note	Contacts Not Included
Number of Positions	9
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.079 in

035023 Series

Part	Note	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Mounting Type	Contact Type	Color	Connector Type	Number of Positions	Pitch	Number of Rows
Molex 0350230004	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	4	0.079 in	1
Molex 0350230007	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	7	0.079 in	1
Molex 0350230002	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	2	0.079 in	1

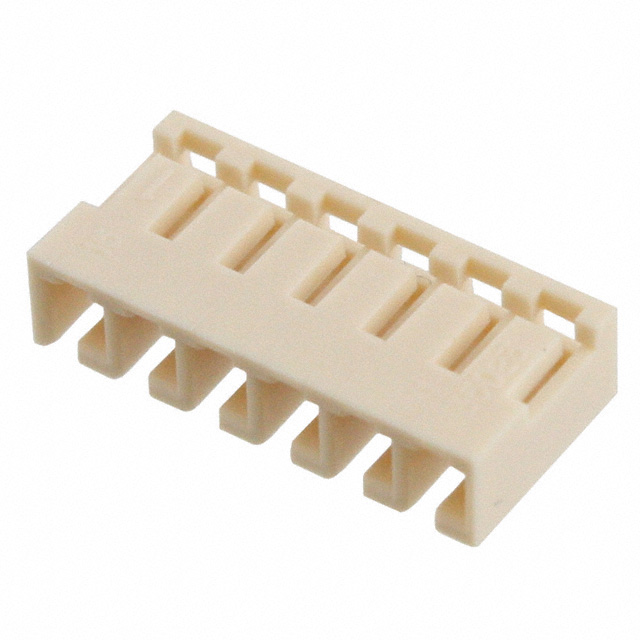

Molex 0350230006	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	6	0.079 in	1
Molex 0350230008	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	8	0.079 in	1
Molex 0350230005	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	5	0.079 in	1

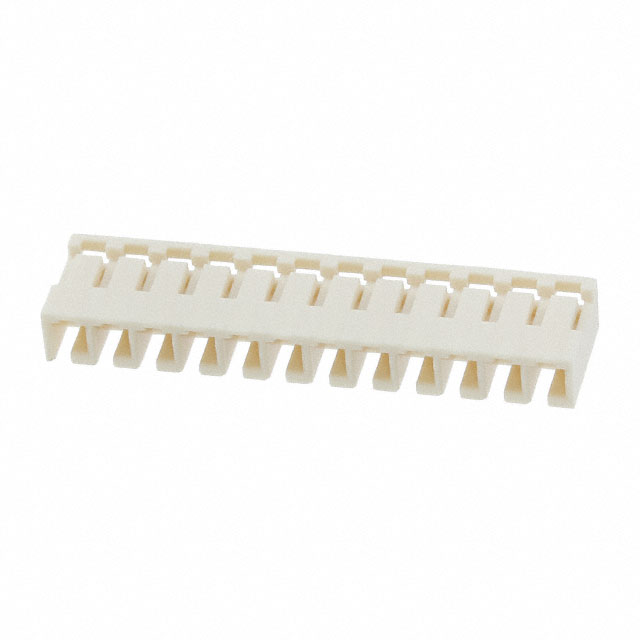

Molex 0350230012	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	12	0.079 in	1
Molex 0350230013	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	13	0.079 in	1
Molex 0350230009	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	9	0.079 in	1
Molex 0350230015	Contacts Not Included	Crimp	-40 °C	105 °C	Nylon 6/6 Polyamide (PA66)	Right Angle Through Hole	Male Pin	Natural	Board-In	15	0.079 in	1
