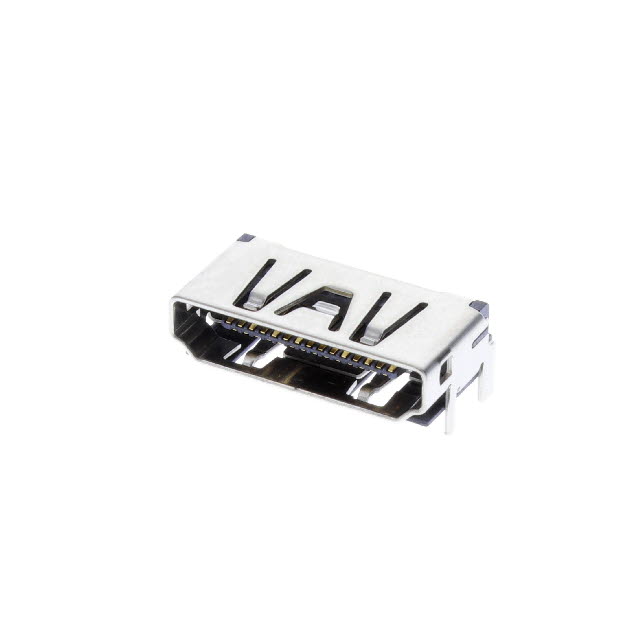

HDMR-29-01-S-SM-TR
ActiveSamtec Inc.
CONN RCPT HDMI 29POS SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
HDMR-29-01-S-SM-TR
ActiveSamtec Inc.
CONN RCPT HDMI 29POS SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDMR-29-01-S-SM-TR |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.3 A |
| Features | Board Guide |
| Gender | Receptacle |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 29 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Brass |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 40 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.71 | |
| 5 | $ 7.47 | |||
| 10 | $ 7.03 | |||
| 25 | $ 6.53 | |||
| 50 | $ 6.19 | |||
| Tape & Reel (TR) | 100 | $ 5.89 | ||
| 200 | $ 5.62 | |||
| 300 | $ 5.48 | |||
| 500 | $ 5.31 | |||
| 700 | $ 5.21 | |||
| 1000 | $ 5.11 | |||
Description
General part information
HDMR-29 Series
HDMI Receptacle Connector 29 Position Surface Mount, Right Angle
