C3116.41.86

Active

Prysmian Group

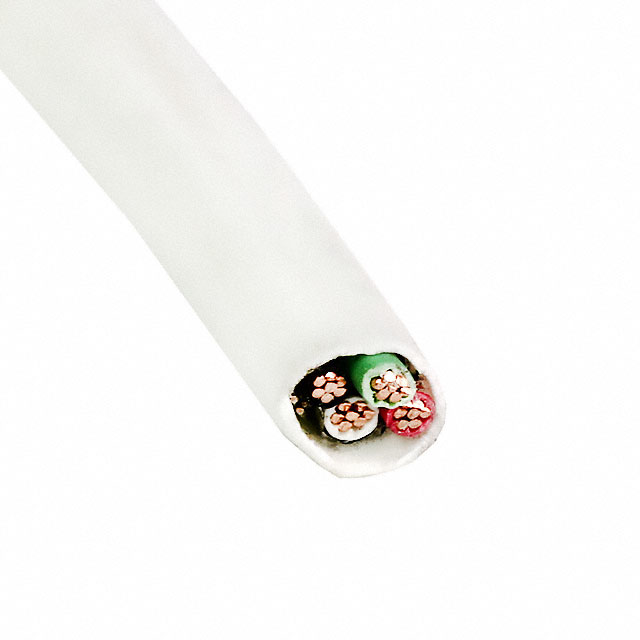

CABLE 4COND 22AWG NATURAL

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 22AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	C3116.41.86

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.141 in
Jacket (Insulation) Diameter [diameter]	3.58 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Usage	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Cable Type	Ratings	Number of Conductors	Length	Length	Features
Prysmian Group C3116.30.05	150 V	0.015 in	0.381 mm	Poly-Vinyl Chloride (PVC)	22 AWG	Communication Control	Yellow	Copper Tinned	32 AWG	7	0.141 in	3.58 mm	75 ░C	0 °C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	ASTM B-3	4	1000 ft	304.8 m	Rip Cord
Prysmian Group C3116.41.86	150 V	0.015 in	0.381 mm	Poly-Vinyl Chloride (PVC)	22 AWG	Communication Control	Natural	Copper Tinned	32 AWG	7	0.141 in	3.58 mm	75 ░C	0 °C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	ASTM B-3	4	1000 ft	304.8 m	Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 0.51

General part information

4 Conductor Multi-Conductor Cable Natural 22 AWG 1000.0' (304.8m)
