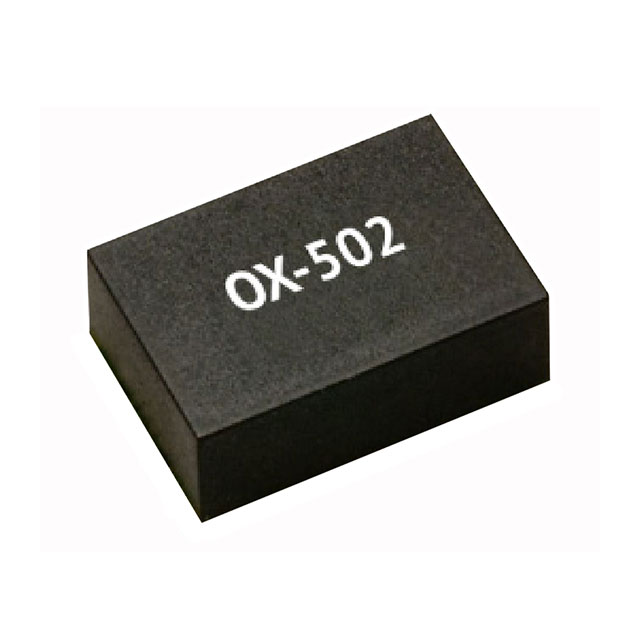

OX-5021-EAE-1080-24M576
ActiveMicrosemi Corporation
OCXO SMD HCMOS 24.576MHZ
Deep-Dive with AI
Search across all available documentation for this part.
OX-5021-EAE-1080-24M576
ActiveMicrosemi Corporation
OCXO SMD HCMOS 24.576MHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OX-5021-EAE-1080-24M576 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 24.576 MHz |
| Frequency Stability | 10 ppb |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.563 in |
| Size / Dimension [x] | 14.3 mm |
| Size / Dimension [y] | 9.4 mm |
| Size / Dimension [y] | 0.37 " |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OX-5021 Series
24.576 MHz OCXO HCMOS Oscillator 3.3V 6-SMD, No Lead
