827914-3

Active

TE Connectivity AMP Connectors

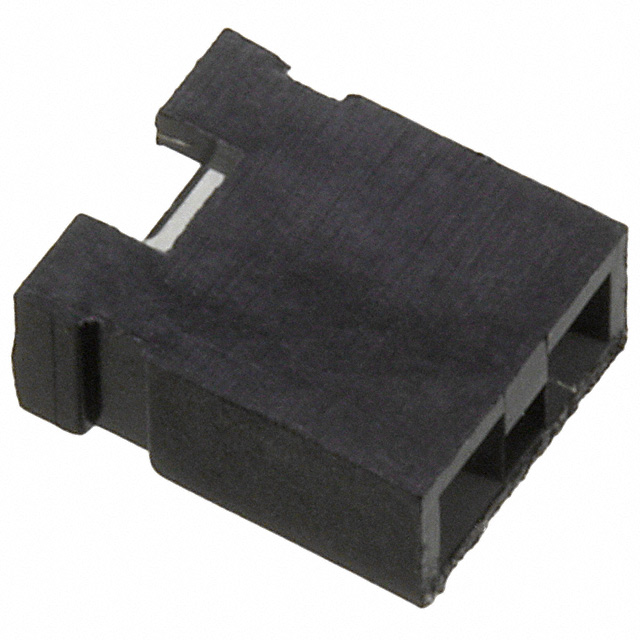

2P SHUNTCONNECTOR ASSY

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

2P SHUNTCONNECTOR ASSY

Technical Specifications

Parameters and characteristics for this part

Specification	827914-3

Color	Black
Contact Finish	Tin
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	6 mm
Height [z]	0.236 "
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

2P SHUNTCONNECTOR ASSY

Part	Pitch [x]	Pitch [x]	Housing Material	Gender	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Height [z]	Height [z]	Contact Finish	Color	Current Rating (Amps)	Type
TE Connectivity AMP Connectors 827914-3	2.54 mm	0.1 in	Glass Filled, Nylon 6/6, Polyamide (PA66)	Female Sockets	UL94 V-0	1 x 2	2	6 mm	0.236 "	Tin	Black	3 A	Open Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Tin
