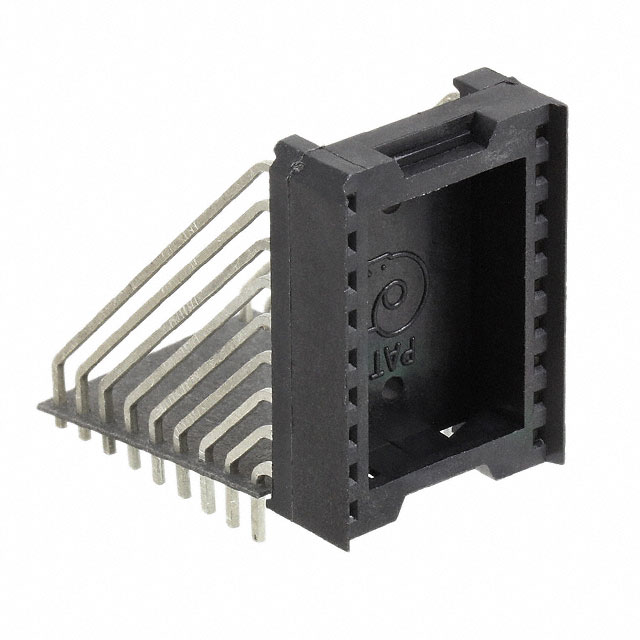

CONN IC DIP SOCKET 18POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18-6810-90T
ActiveAries Electronics
CONN IC DIP SOCKET 18POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18-6810-90T |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Current Rating (Amps) | 1.5 A |
| Features | Closed Frame |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Vertical, Right Angle |
| Number of Positions or Pins (Grid) | 18 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.145 " |
| Termination Post Length | 3.68 mm |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
18-6810 Series
| Part | Features | Current Rating (Amps) | Number of Positions or Pins (Grid) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Housing Material | Material Flammability Rating | Pitch - Post | Pitch - Post | Termination | Contact Finish - Post | Contact Material - Mating | Mounting Type | Type | Type | Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material - Post | Pitch - Mating | Pitch - Mating | Termination Post Length | Termination Post Length | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aries Electronics | Closed Frame | 1.5 A | 18 | 200 µin | 5.08 µm | Polyamide (PA46) Nylon 4/6 | UL94 V-0 | 2.54 mm | 0.1 in | Solder | Tin | Phosphor Bronze | Right Angle Through Hole Vertical | DIP | 0.6 in | 15.24 mm | 5.08 µm | 200 µin | Phosphor Bronze | 0.1 in | 2.54 mm | 0.145 " | 3.68 mm | |
Aries Electronics | Closed Frame | 1.5 A | 18 | 10 çin | 0.25 çm | Polyamide (PA46) Nylon 4/6 | UL94 V-0 | 2.54 mm | 0.1 in | Solder | Gold | Phosphor Bronze | Right Angle Through Hole Vertical | DIP | 0.6 in | 15.24 mm | 0.25 çm | 10 çin | Phosphor Bronze | 0.1 in | 2.54 mm | 0.145 " | 3.68 mm | Gold |
Aries Electronics | Closed Frame | 1.5 A | 18 | 200 µin | 5.08 µm | Polyamide (PA46) Nylon 4/6 | UL94 V-0 | 2.54 mm | 0.1 in | Solder | Tin | Phosphor Bronze | Right Angle Through Hole Vertical | DIP | 0.6 in | 15.24 mm | 5.08 µm | 200 µin | Phosphor Bronze | 0.1 in | 2.54 mm | 0.145 " | 3.68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.84 | |
| 10 | $ 12.95 | |||
| 25 | $ 11.72 | |||
| 50 | $ 10.88 | |||
| 100 | $ 10.12 | |||
| 250 | $ 9.22 | |||
| 500 | $ 8.62 | |||
| 1000 | $ 8.08 | |||
Description
General part information
18-6810 Series
18 (2 x 9) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole, Right Angle, Vertical
