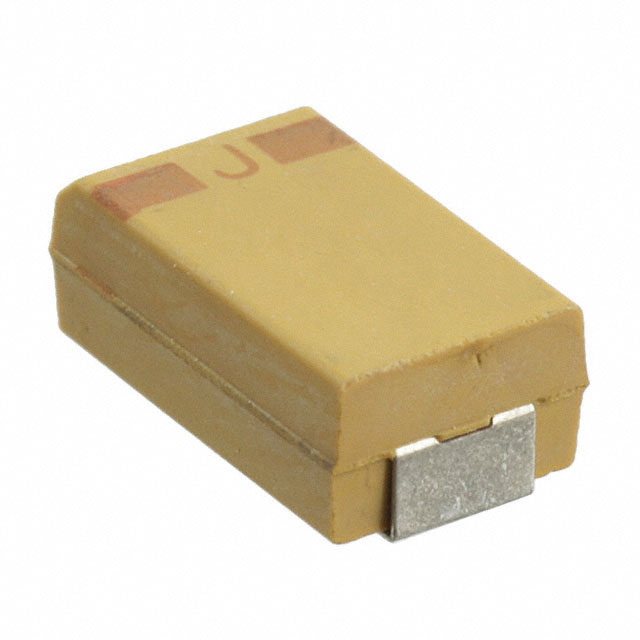

CWR11MH475JC

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 5% +TOL, 5% -TOL, 4.7UF, SURFACE MOUNT, 2917, CHIP

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 5% +TOL, 5% -TOL, 4.7UF, SURFACE MOUNT, 2917, CHIP

Technical Specifications

Parameters and characteristics for this part

Specification	CWR11MH475JC

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	1.5 Ohm
Failure Rate	C (0.01%)
Features	High Reliability
Grade	Military
Height - Seated (Max) [Max] [z]	0.122 "
Height - Seated (Max) [Max] [z]	3.1 mm
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Qualification	MIL-PRF-55365/8
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	5 %
Type	Molded
Voltage - Rated	35 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Grade	Capacitance	Mounting Type	Voltage - Rated	Features	Failure Rate	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Package / Case	ESR (Equivalent Series Resistance)	Tolerance	Qualification	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Size / Dimension [x]	Size / Dimension [y]
KEMET CWR11MH335KB	3.2 mm	6 mm	0.236 in	0.126 "	Military	3.3 µF	Surface Mount	35 V	High Reliability	B (0.1%)	-55 °C	125 °C	Molded	6032 Metric	2312	2.5 Ohm	10 %	MIL-PRF-55365/8
KEMET CWR11MH105JB	2.8 mm	3.5 mm	0.138 "	0.11 in	Military	1 µF	Surface Mount	35 V	High Reliability	B (0.1%)	-55 °C	125 °C	Molded	3528 Metric	1411	6.5 Ohm	5 %	MIL-PRF-55365/8	B	2.1 mm	0.083 "
KEMET CWR11MH475JC	4.3 mm	7.3 mm			Military	4.7 µF	Surface Mount	35 V	High Reliability	C (0.01%)	-55 °C	125 °C	Molded	7343 Metric		1.5 Ohm	5 %	MIL-PRF-55365/8	D	3.1 mm	0.122 "	2917	0.287 "	0.169 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 85.36
	Cut Tape (CT)	1	$ 7.86
	Digi-Reel®	1	$ 7.86
	Tape & Reel (TR)	500	$ 4.73

General part information

4.7 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 1.5Ohm
