A221Y06V22

Active

Nicomatic

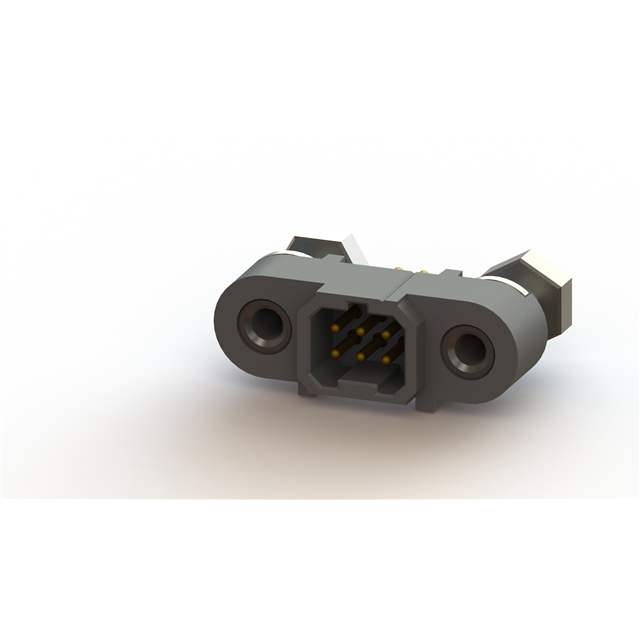

MALE 6POS STRAIGHT TRGH 1MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 6POS STRAIGHT TRGH 1MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A221Y06V22	A221Y06V Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Finish Thickness - Post	0.15 µm	0.15 µm
Contact Finish Thickness - Post	5.9 µin	5.9 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2.5 A	2.5 A
Fastening Type	-	Push-Pull
Features	Mounting Flange, Mating Flange, Mounting Hardware	Mating Flange, Mounting Flange, Mounting Hardware
Insulation Color	Black	Black
Insulation Height	0.161 in	0.161 in
Insulation Height	4.1 mm	4.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Row Spacing - Mating	0.039 "	0.039 "
Row Spacing - Mating	1 mm	1 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

MALE 6POS STRAIGHT TRGH 1MM

Part	Pitch - Mating	Pitch - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Positions Loaded	Voltage Rating	Style	Shrouding	Contact Finish - Post	Contact Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Current Rating (Amps)	Number of Positions	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Fastening Type	Insulation Material	Material Flammability Rating	Number of Rows	Features	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]
Nicomatic A221Y06VXX	0.039 in	1 mm	Circular	0.039 "	1 mm	Through Hole	All	600 VAC	Board to Board, Cable	Shrouded - 4 Wall	Gold	Male Pin	Solder	0.15 µm	5.9 µin	Black	2.5 A	6	Header	Gold	0.15 µm	5.9 µin	Copper Alloy	Push-Pull	Liquid Crystal Polymer (LCP)	UL94 V-0	2	Mating Flange	0.161 in	4.1 mm	-65 ░C	200 °C
Nicomatic A221Y06V22	0.039 in	1 mm	Circular	0.039 "	1 mm	Through Hole	All	600 VAC	Board to Board, Cable	Shrouded - 4 Wall	Gold	Male Pin	Solder	0.15 µm	5.9 µin	Black	2.5 A	6	Header	Gold	0.15 µm	5.9 µin	Copper Alloy		Liquid Crystal Polymer (LCP)	UL94 V-0	2	Mating Flange, Mounting Flange, Mounting Hardware	0.161 in	4.1 mm	-65 ░C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.039" (1.00mm)
