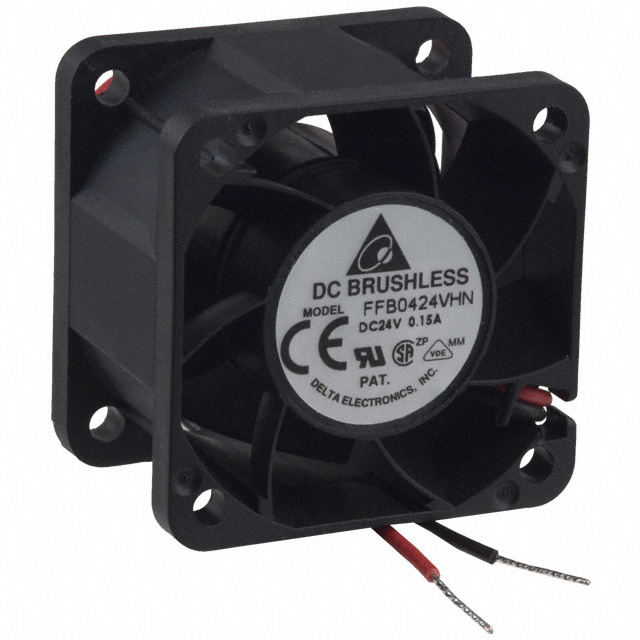

FFB0424VHN

Active

Delta Electronics

FAN AXIAL 40X28MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans, Electric - Component UL Cert +2

FFB0424VHN

Active

Delta Electronics

FAN AXIAL 40X28MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0424VHN

Air Flow	0.442 m³/min
Air Flow	15.8 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	45 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.4 W
RPM	9500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.509 in H2O
Static Pressure	126.8 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	0.071 lb
Weight	32.21 g
Width [y]	28 mm

FFB0424 Series

Part	Fan Type	Approval Agency	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Lifetime @ Temp.	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Weight	Weight	Material - Blade	Bearing Type	Noise	Width [y]	Power (Watts)	Termination	Air Flow	Air Flow	Material - Frame	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Features
Delta Electronics FFB0424HHN	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	70 °C	70 °C	-10 °C	-10 °C	8000 RPM	0.071 lb	32.21 g	Plastic	Ball	41 dB	28 mm	1.92 W	2 Wire Leads	13.2 CFM	0.37 m³/min	Plastic	92.2 Pa	0.37 in H2O	27.6 VDC	14 VDC
Delta Electronics FFB0424HN-R00	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	70 °C	70 °C	-10 °C	-10 °C	6500 RPM	0.071 lb	32.21 g	Plastic	Ball	36 dB	28 mm	1.44 W	3 Wire Leads	10.6 CFM	0.297 m³/min	Plastic	61.8 Pa	0.248 in H2O	27.6 VDC	14 VDC	60 mA	Locked Rotor Sensor
Delta Electronics FFB0424VHN-F00	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	60 °C	60 °C	-10 °C	-10 °C	9500 RPM	0.071 lb	32.21 g	Plastic	Ball	45 dB(A)	28 mm	2.4 W	3 Wire Leads	15.8 CFM	0.442 m³/min	Plastic	126.8 Pa	0.509 in H2O	26.4 VDC	14 VDC	100 mA	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB0424HN	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	70 °C	70 °C	-10 °C	-10 °C	6500 RPM	0.071 lb	32.21 g	Plastic	Ball	36 dB	28 mm	1.44 W	2 Wire Leads	10.6 CFM	0.297 m³/min	Plastic	61.8 Pa	0.248 in H2O	27.6 VDC	14 VDC	60 mA
Delta Electronics FFB0424VHN-TZT4	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	70 °C	70 °C	-10 °C	-10 °C	9500 RPM	0.071 lb	32.21 g	Plastic	Ball	41.9 dB(A)	28 mm	2.4 W	4 Wire Leads	15.8 CFM	0.442 m³/min	Plastic	126.8 Pa	0.509 in H2O	26.4 VDC	21.6 VDC	100 mA	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics FFB0424MN	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	70 °C	70 °C	-10 °C	-10 °C	5000 RPM	0.071 lb	32.21 g	Plastic	Ball	23.9 dB(A)	28 mm		2 Wire Leads	8.1 CFM	0.227 m³/min	Plastic	37 Pa	0.148 in H2O	27.6 VDC	14 VDC	40 mA
Delta Electronics FFB0424VHN	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	60 °C	60 °C	-10 °C	-10 °C	9500 RPM	0.071 lb	32.21 g	Plastic	Ball	45 dB(A)	28 mm	2.4 W	2 Wire Leads	15.8 CFM	0.442 m³/min	Plastic	126.8 Pa	0.509 in H2O	26.4 VDC	14 VDC	100 mA
Delta Electronics FFB0424VHN-B	Tubeaxial	CE CSA UL VDE	40 mm	Square	40 mm	70000 Hrs	24 VDC	60 °C	60 °C	-10 °C	-10 °C	9500 RPM	0.071 lb	32.21 g	Plastic	Ball	42 dB	28 mm	2.4 W	2 Wire Leads	15.8 CFM	0.442 m³/min	Plastic	126.8 Pa	0.509 in H2O	26.4 VDC	14 VDC	100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.67
		10	$ 14.95
		25	$ 13.53
		50	$ 12.46
		100	$ 11.18
		288	$ 10.32
		576	$ 9.61

Description

General part information

FFB0424 Series

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 15.8 CFM (0.442m³/min) 2 Wire Leads
