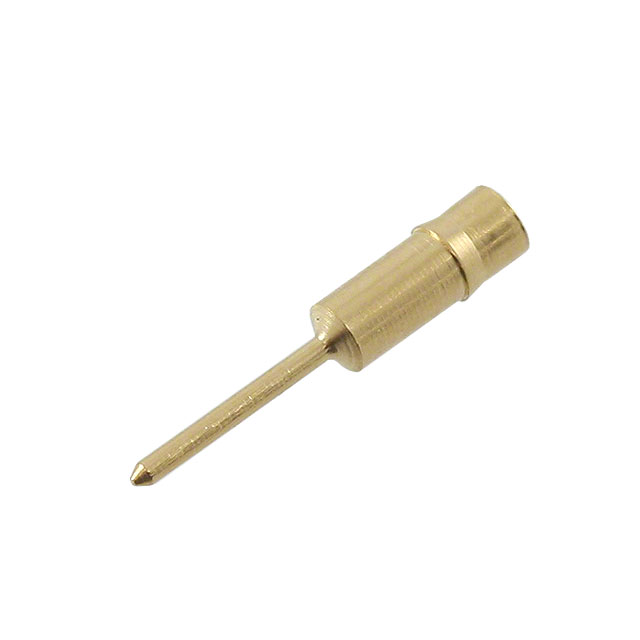

8114-0-15-15-16-27-04-0 - 8114-0-15-15-16-27-04-0

8114-0-15-15-16-27-04-0

Active
Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

8114-0-15-15-16-27-04-0 - 8114-0-15-15-16-27-04-0

8114-0-15-15-16-27-04-0

Active
Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 PRESSFIT

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification8114-0-15-15-16-27-04-0
Accepts Pin Diameter [Max]0.86 mm
Accepts Pin Diameter [Max]0.034 "
Accepts Pin Diameter [Min]0.56 mm
Accepts Pin Diameter [Min]0.022 "
Accepts Square Pin Size [diameter]0.64 mm
Accepts Square Pin Size [diameter]0.025 in
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialBeryllium Copper
Length - Overall [x]0.37 in
Length - Overall [x]9.4 mm
Mounting Hole Diameter [diameter]1.65 mm
Mounting Hole Diameter [diameter]0.065 in
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pin Hole Diameter [diameter]0.051 in
Pin Hole Diameter [diameter]1.3 mm
Socket Depth3.81 mm
Socket Depth0.15 in
Tail Diameter [diameter]0.02 in
Tail Diameter [diameter]0.51 mm
Tail TypeStandard Tail
TerminationPress-Fit

8114-0 Series

PartMounting Hole Diameter [diameter]Mounting Hole Diameter [diameter]Operating Temperature [Min]Operating Temperature [Max]TerminationContact MaterialSocket DepthSocket DepthContact FinishTail Diameter [diameter]Tail Diameter [diameter]Tail TypeContact Finish ThicknessContact Finish ThicknessAccepts Square Pin Size [diameter]Accepts Square Pin Size [diameter]Pin Hole Diameter [diameter]Pin Hole Diameter [diameter]Accepts Pin Diameter [Max]Accepts Pin Diameter [Max]Accepts Pin Diameter [Min]Accepts Pin Diameter [Min]Length - Overall [x]Length - Overall [x]
Mill-Max Manufacturing Corp.
8114-0-15-80-16-27-04-0
1.65 mm
0.065 in
-55 °C
125 °C
Press-Fit
Beryllium Copper
3.81 mm
0.15 in
Gold
0.02 in
0.51 mm
Standard Tail
0.76 Ám
30 Áin
0.64 mm
0.025 in
0.051 in
1.3 mm
0.86 mm
0.034 "
0.56 mm
0.022 "
0.37 in
9.4 mm
Mill-Max Manufacturing Corp.
8114-0-15-01-16-14-04-0
1.65 mm
0.065 in
-55 °C
125 °C
Press-Fit
Beryllium Copper
3.81 mm
0.15 in
Gold
0.02 in
0.51 mm
Standard Tail
0.25 Ám
10 Áin
0.64 mm
0.025 in
0.051 in
1.3 mm
0.86 mm
0.034 "
0.56 mm
0.022 "
0.37 in
9.4 mm
Mill-Max Manufacturing Corp.
8114-0-15-01-16-27-04-0
1.65 mm
0.065 in
-55 °C
125 °C
Press-Fit
Beryllium Copper
3.81 mm
0.15 in
Gold
0.02 in
0.51 mm
Standard Tail
0.76 Ám
30 Áin
0.64 mm
0.025 in
0.051 in
1.3 mm
0.86 mm
0.034 "
0.56 mm
0.022 "
0.37 in
9.4 mm
Mill-Max Manufacturing Corp.
8114-0-15-80-16-80-04-0
1.65 mm
0.065 in
-55 °C
125 °C
Press-Fit
Beryllium Copper
3.81 mm
0.15 in
Tin
0.02 in
0.51 mm
Standard Tail
5.08 Ám
200 Áin
0.64 mm
0.025 in
0.051 in
1.3 mm
0.86 mm
0.034 "
0.56 mm
0.022 "
0.37 in
9.4 mm
Mill-Max Manufacturing Corp.
8114-0-15-15-16-27-04-0
1.65 mm
0.065 in
-55 °C
125 °C
Press-Fit
Beryllium Copper
3.81 mm
0.15 in
Gold
0.02 in
0.51 mm
Standard Tail
0.76 Ám
30 Áin
0.64 mm
0.025 in
0.051 in
1.3 mm
0.86 mm
0.034 "
0.56 mm
0.022 "
0.37 in
9.4 mm
Mill-Max Manufacturing Corp.
8114-0-15-15-16-14-04-0
1.65 mm
0.065 in
-55 °C
125 °C
Press-Fit
Beryllium Copper
3.81 mm
0.15 in
Gold
0.02 in
0.51 mm
Standard Tail
0.25 Ám
10 Áin
0.64 mm
0.025 in
0.051 in
1.3 mm
0.86 mm
0.034 "
0.56 mm
0.022 "
0.37 in
9.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.47
10$ 0.41
25$ 0.38
50$ 0.35
100$ 0.34
250$ 0.31
500$ 0.30
1000$ 0.24
2500$ 0.22

Description

General part information

8114-0 Series

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Standard Tail Press-Fit

Documents

Technical documentation and resources

No documents available
