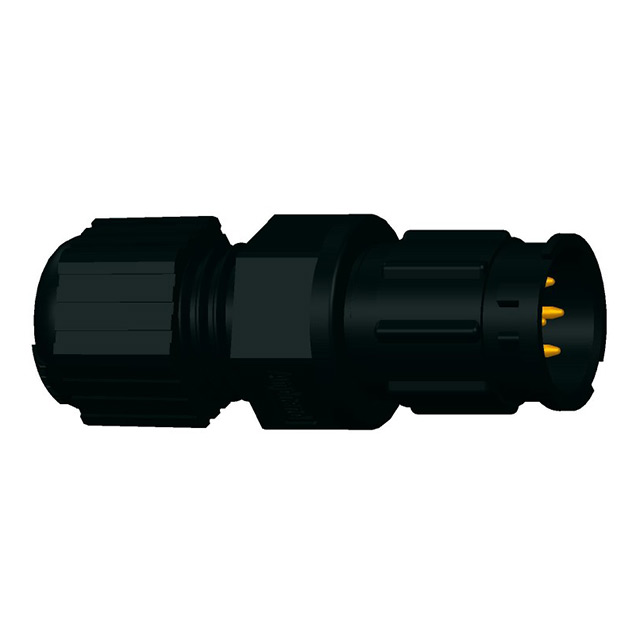

BD-08BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BD-08BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD-08BMMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

BD-08BMMA Series

Part	Shielding	Type	Fastening Type	Primary Material	Ingress Protection	Housing Color	Features	Contact Shape	Number of Positions	Orientation	Mounting Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Size - Insert	Insert Material	Contact Type	Contact Finish - Mating	Current Rating (Amps)	Contact Material	Backshell Material, Plating	Color	Voltage Rating	Termination	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Material	Material Flammability Rating
Amphenol LTW BD-08BMMA-QL8MN0	Unshielded	For Male Pins	Bayonet Lock	Plastic	IP68 - Dust Tight Waterproof	Black	Backshell	Circular	8	Keyed	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	Plug Housing	B	Thermoplastic	Crimp
Amphenol LTW BD-08BMMA-QL8LN0	Unshielded	For Male Pins	Bayonet Lock	Plastic	IP68 - Dust Tight Waterproof	Black	Backshell	Circular	8	Keyed	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	Plug Housing	B	Thermoplastic	Crimp
Amphenol LTW BD-08BMMA-QL8AP0	Unshielded		Bayonet Lock	Plastic	IP68 - Dust Tight Waterproof		Backshell		8	Keyed	Free Hanging (In-Line)		-40 °C	105 ░C	Male Pins Plug	B	Thermoplastic		Gold	5 A	Copper Alloy	Thermoplastic	Black	300 VDC	Crimp
Amphenol LTW BD-08BMMA-QL8LP0	Unshielded		Push-Pull	Plastic	IP68 - Dust Tight Waterproof		Backshell		8	Keyed	Free Hanging (In-Line)		-40 °C	105 ░C	Male Pins Plug	B	Polyamide (PA) Nylon Glass Filled		Gold	5 A	Copper Alloy		Black	300 VAC	Crimp	0.394 in	8 mm	10 mm	0.315 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0
Amphenol LTW BD-08BMMA-QL8AN0	Unshielded	For Male Pins	Bayonet Lock	Plastic	IP68 - Dust Tight Waterproof	Black	Backshell	Circular	8	Keyed	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	Plug Housing	B	Thermoplastic	Crimp
Amphenol LTW BD-08BMMA-LL7001	Unshielded		Bayonet Lock	Plastic	IP67 - Dust Tight Waterproof		Backshell		8	Keyed	Free Hanging (In-Line)		-40 °C	105 ░C	Male Pins Receptacle	B	Polyamide (PA) Nylon Glass Filled		Gold	5 A	Copper Alloy	Nylon Polyamide (PA)	Black							Glass Filled Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.47
		10	$ 10.16
		25	$ 9.77
		50	$ 9.38
		100	$ 8.86
		250	$ 8.08
		500	$ 7.56
		1000	$ 6.93

Description

General part information

BD-08BMMA Series

8 Position Circular Connector Receptacle, Male Pins Solder Cup
