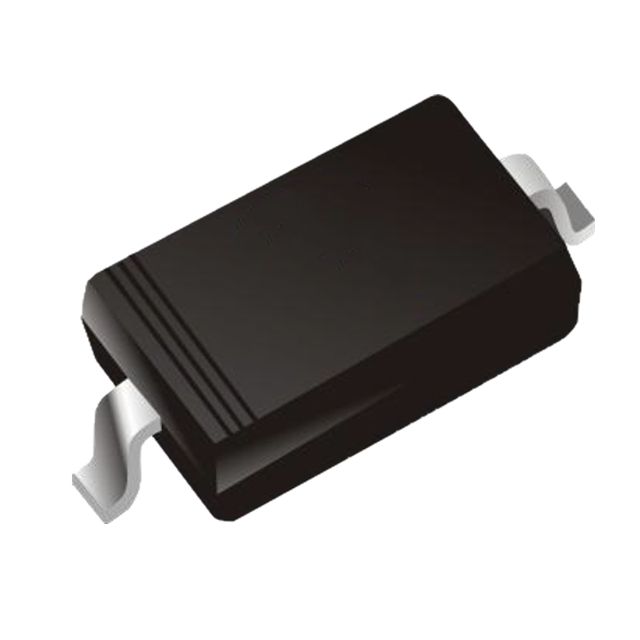

1N4148W T4

Active

MDD

DIODE GEN PURP 100V 150MA SOD123

Search across all available documentation for this part.

Active

MDD

DIODE GEN PURP 100V 150MA SOD123

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	12000	$ 0.04

General part information

Diode 100 V 150mA Surface Mount SOD-123

Technical documentation and resources

Specification	1N4148W T4	1N4148 Series

Capacitance @ Vr, F	2 pF	2 - 4 pF
Current - Average Rectified (Io)	150 mA	150 mA
Current - Reverse Leakage @ Vr	1 µA	1 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-65 C	-65 - -55 C
Package / Case	SOD-123	SOD-123, SOD-323, SC-76
Reverse Recovery Time (trr)	4 ns	4 ns
Speed	-	Any Speed
Speed	-	200 mA
Supplier Device Package	SOD-123	SOD-123, SOD-323
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	100 V
Voltage - Forward (Vf) (Max) @ If	720 mV	1 - 720 mV

Part	Capacitance @ Vr, F	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Package / Case	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Technology	Speed	Speed
MDD 1N4148W T4	2 pF	Surface Mount	100 V	150 °C	-65 C	150 mA	SOD-123	720 mV	SOD-123	4 ns	1 µA	Standard
MDD 1N4148WS	4 pF	Surface Mount	100 V	150 °C	-55 °C	150 mA	SOD-323	1 V	SC-76, SOD-323	4 ns	1 µA	Standard	Any Speed	200 mA
