51-255.022D
ActiveEAO

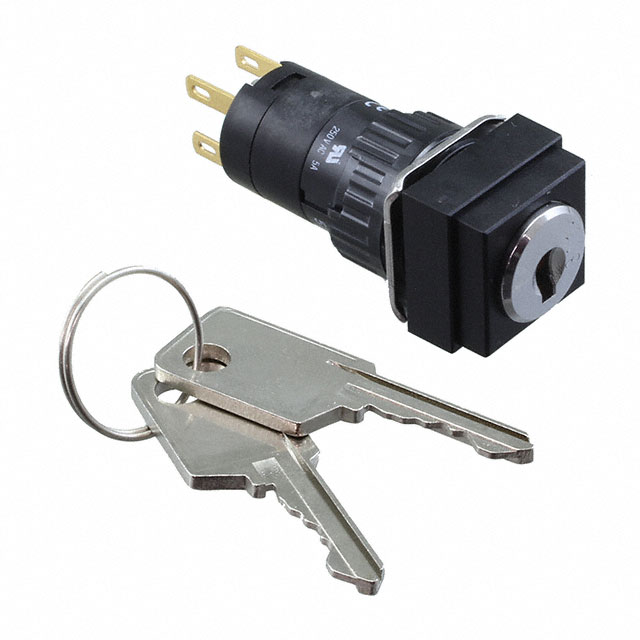

SWITCH KEY LOCK N.O./N.C. DPST 90° FLAT KEY 5A 250VAC PLUG-IN PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51-255.022D
ActiveEAO
SWITCH KEY LOCK N.O./N.C. DPST 90° FLAT KEY 5A 250VAC PLUG-IN PANEL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 51-255.022D | 51-255 Series |
|---|---|---|
| Actuator Type | Flat Key | Flat Key |
| Angle of Throw | 90 ° | 90 ° |
| Circuit | DPST-NO/NC | DPST-NO/NC |
| Contact Timing | Not Specified | Not Specified |
| Current Rating (Amps) | 5 A | 5 A |
| Depth Behind Flange | 36 mm | 26.5 - 44.5 mm |
| Electrical Life | - | 50000 Cycles |
| Features | IP65 | IP65 |
| Key Removable Positions | 1 only | 1 only |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions | - | 21 mm˛ |
| Panel Cutout Dimensions [diameter] | 16 mm | 16 mm |
| Switch Function | On-Off, Off-On | On-Off, Off-On |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Solder Lug, Quick Connect, Solder |
| Termination Style | 2.8 mm | 2.8 mm |
| Voltage Rating - AC | 250 V | 250 V |
51-255 Series
SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Voltage Rating - AC | Features | Circuit | Termination Style | Depth Behind Flange | Contact Timing | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Key Removable Positions | Angle of Throw | Switch Function | Actuator Type | Number of Positions | Termination Style | Termination Style | Panel Cutout Dimensions | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 51-255.025D | 250 V | IP65 | DPST-NO/NC | Solder Lug | 26.5 mm | Not Specified | 55 °C | -25 °C | 16 mm | 5 A | 1 only | 90 ° | Off-On, On-Off | Flat Key | 2 | ||||
EAO 51-255.022DF | 250 V | IP65 | DPST-NO/NC | Quick Connect, Solder | 44.5 mm | Not Specified | 55 °C | -25 °C | 5 A | 1 only | 90 ° | Off-On, On-Off | Flat Key | 2 | 0.11 in | 2.8 mm | 21 mm˛ | ||
EAO 51-255.025K | 250 V | IP65 | DPST-NO/NC | Solder Lug | 35.5 mm | Not Specified | 55 °C | -25 °C | 16 mm | 5 A | 1 only | 90 ° | Off-On, On-Off | Flat Key | 2 | 50000 Cycles | |||
EAO 51-255.022D | 250 V | IP65 | DPST-NO/NC | Quick Connect, Solder | 36 mm | Not Specified | 55 °C | -25 °C | 16 mm | 5 A | 1 only | 90 ° | Off-On, On-Off | Flat Key | 2 | 0.11 in | 2.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 71.14 | |
| 10 | $ 64.82 | |||
| 25 | $ 60.47 | |||
| 50 | $ 58.10 | |||
| 100 | $ 54.15 | |||
Description
General part information
51-255 Series
Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
Documents
Technical documentation and resources
