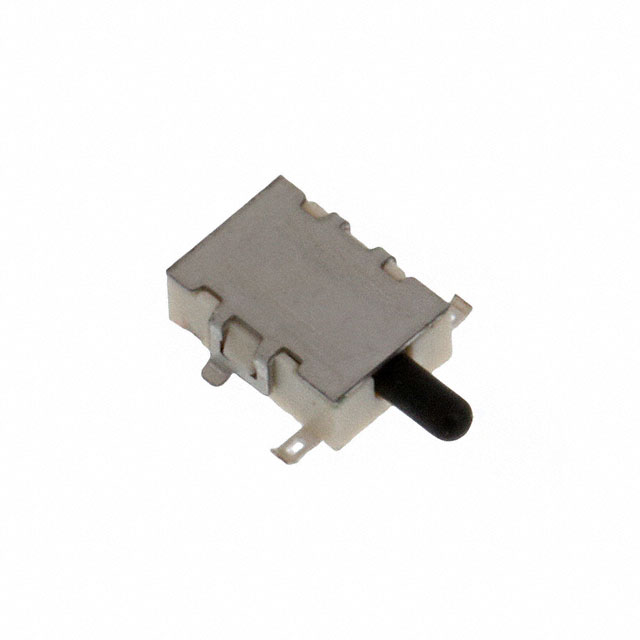

JJMH0UG200NCNMRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECTOR SPST-NC 0.1A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JJMH0UG200NCNMRTR |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 70 gf |
| Operating Position | 2.16 mm |
| Operating Position | 0.085 in |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Pretravel | 0.35 mm |
| Pretravel | 0.014 in |
| Switch Function | On-Mom |
| Termination Style | Gull Wing |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.92 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.68 | |||
| Tape & Reel (TR) | 1900 | $ 0.47 | ||
Description
General part information
JJMH0 Series
Switch SPST-NC Surface Mount
