ECG.3B.330.CLV

Active

LEMO

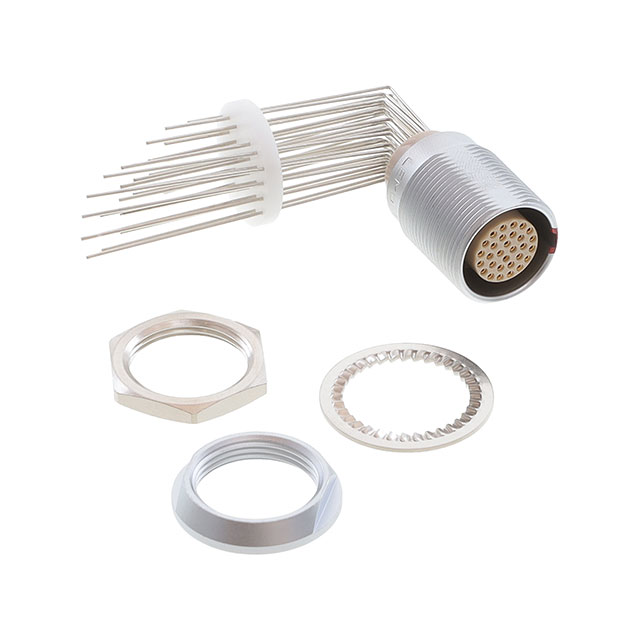

CONN RCPT FMALE 30POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECG.3B.330.CLV

Active

LEMO

CONN RCPT FMALE 30POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 202.52
		10	$ 158.47
		25	$ 144.56
		50	$ 135.20

Description

General part information

ECG.3B Series

30 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECG.3B.330.CLV	ECG.3B Series

Color	Silver	Silver, White
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	3.5 A	3.5 - 19 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	30	4 - 30
Number of Positions	-	16
Number of Positions	-	2
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal, Plastic
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass, Polysulfone (PSU)
Shell Size - Insert	330	304 - 856
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder

ECG.3B Series

CONN RCPT FMALE 12POS GOLD CRIMP

Part	Shielding	Mounting Feature	Shell Size - Insert	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Fastening Type	Current Rating (Amps)	Orientation	Shell Material	Insert Material	Primary Material	Termination	Connector Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Shell Finish	Color	Mounting Type	Number of Positions [custom]	Number of Positions [custom]
LEMO ECG.3B.312.CYM	Shielded	Front and Rear Side Nut	312	UL94 V-0	59 Áin	1.5 Ám	12	Push-Pull	9 A	G	Brass	Polyetheretherketone (PEEK)	Metal	Crimp	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver
LEMO ECG.3B.330.PLNBW	Shielded	Front and Rear Side Nut	330	UL94 V-0	59 Áin	1.5 Ám	30	Push-Pull	3.5 A	G	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Plastic	Solder	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze		White	Panel Mount, Through Hole
LEMO ECG.3B.306.CYP	Shielded	Front and Rear Side Nut	306	UL94 V-0	59 Áin	1.5 Ám	6	Push-Pull	17 A	G	Brass	Polyetheretherketone (PEEK)	Metal	Crimp	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver
LEMO ECG.3B.312.CLV	Shielded	Front and Rear Side Nut	312	UL94 V-0	59 Áin	1.5 Ám	12	Push-Pull	9 A	G	Brass	Polyetheretherketone (PEEK)	Metal	Solder	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver	Panel Mount, Right Angle, Through Hole
LEMO ECG.3B.856.CLL1	Shielded	Front and Rear Side Nut	856	UL94 V-0				Push-Pull	7 A	G	Brass	Polyetheretherketone (PEEK)	Metal		Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold		Chrome	Silver		16	2
LEMO ECG.3B.306.CYM	Shielded	Front and Rear Side Nut	306	UL94 V-0	59 Áin	1.5 Ám	6	Push-Pull	17 A	G	Brass	Polyetheretherketone (PEEK)	Metal	Crimp	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver
LEMO ECG.3B.306.CLV	Shielded	Front and Rear Side Nut	306	UL94 V-0	59 Áin	1.5 Ám	6	Push-Pull	17 A	G	Brass	Polyetheretherketone (PEEK)	Metal	Solder	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver	Panel Mount, Right Angle, Through Hole
LEMO ECG.3B.314.CLL	Shielded	Front and Rear Side Nut	314	UL94 V-0	59 Áin	1.5 Ám	14	Push-Pull	9 A	G	Brass	Polyetheretherketone (PEEK)	Metal		Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver
LEMO ECG.3B.330.CLV	Shielded	Front and Rear Side Nut	330	UL94 V-0	59 Áin	1.5 Ám	30	Push-Pull	3.5 A	G	Brass	Polyetheretherketone (PEEK)	Metal	Solder	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver	Panel Mount, Right Angle, Through Hole
LEMO ECG.3B.308.CLV	Shielded	Front and Rear Side Nut	308	UL94 V-0	59 Áin	1.5 Ám	8	Push-Pull	13 A	G	Brass	Polyetheretherketone (PEEK)	Metal	Solder	Receptacle, Female Sockets	IP50	-55 °C	250 °C	Gold	Bronze	Chrome	Silver	Panel Mount, Right Angle, Through Hole
