0400-0-15-01-47-01-04-0

Active

Mill-Max Manufacturing Corp.

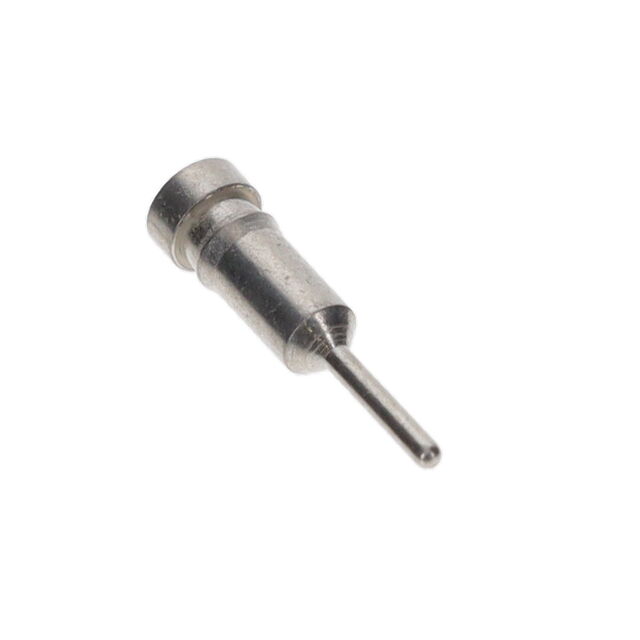

CONN PIN RCPT .025-.037 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0400-0-15-01-47-01-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .025-.037 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0400-0-15-01-47-01-04-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.078 in
Flange Diameter [diameter]	1.98 mm
Length - Overall	0.31 in
Length - Overall	7.87 mm
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	3.94 mm
Socket Depth	0.155 in
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Press-Fit

0400-0 Series

Part	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Material	Termination	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall	Length - Overall	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 0400-0-15-80-47-80-04-0	0.037 "	0.64 mm	0.94 mm	0.025 "	0.64 mm	0.025 in	0.02 in	0.51 mm	0.051 in	1.3 mm	3.94 mm	0.155 in	Beryllium Copper	Press-Fit	Standard Tail	1.7 mm	0.067 "	0.31 in	7.87 mm	0.078 in	1.98 mm	200 Áin	5.08 Ám	Tin	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0400-0-15-80-47-14-04-0	0.037 "	0.64 mm	0.94 mm	0.025 "	0.64 mm	0.025 in	0.02 in	0.51 mm	0.051 in	1.3 mm	3.94 mm	0.155 in	Beryllium Copper	Press-Fit	Standard Tail	1.7 mm	0.067 "	0.31 in	7.87 mm	0.078 in	1.98 mm	10 Áin	0.25 Ám	Gold	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0400-0-15-15-47-14-04-0	0.037 "	0.64 mm	0.94 mm	0.025 "	0.64 mm	0.025 in	0.02 in	0.51 mm	0.051 in	1.3 mm	3.94 mm	0.155 in	Beryllium Copper	Press-Fit	Standard Tail	1.7 mm	0.067 "	0.31 in	7.87 mm	0.078 in	1.98 mm	10 Áin	0.25 Ám	Gold	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0400-0-15-01-47-01-04-0	0.037 "	0.64 mm	0.94 mm	0.025 "	0.64 mm	0.025 in	0.02 in	0.51 mm	0.051 in	1.3 mm	3.94 mm	0.155 in	Beryllium Copper	Press-Fit	Standard Tail	1.7 mm	0.067 "	0.31 in	7.87 mm	0.078 in	1.98 mm	200 Áin	5.08 Ám	Tin-Lead	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.14
		10	$ 0.96
		100	$ 0.86
		1000	$ 0.63
		5000	$ 0.55
		10000	$ 0.52

Description

General part information

0400-0 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Press-Fit

Documents

Technical documentation and resources

No documents available
