Q-2U01P0001009I

Active

Amphenol Custom Cable

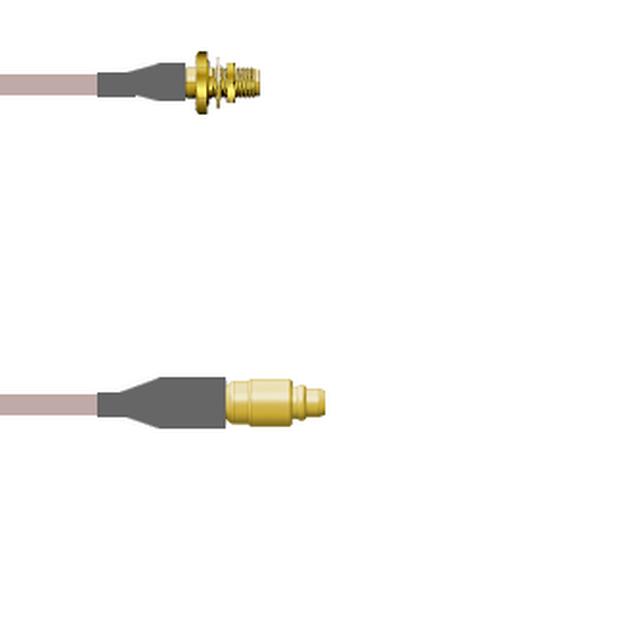

CBL ASSY SMA-MMCX JACK-PLUG 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-MMCX JACK-PLUG 9"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2U01P0001009I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	Length	Length	Style	2nd Connector	Cable Type	2nd Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	1st Connector Mounting Feature	Features	Overall Impedance	Frequency - Max [Max]	Cable Impedance	Connector Impedance	Color	1st Connector	Length
Amphenol Custom Cable Q-2U01P0001012I	12 "	304.8 mm	SMA to MMCX	MMCX Plug	RG-178	Male	Panel Mount	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	3 GHz	50 Ohms	50 Ohms	Copper	SMA Jack
Amphenol Custom Cable Q-2U01P0001009I	9 "	228.6 mm	SMA to MMCX	MMCX Plug	RG-178	Male	Panel Mount	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	3 GHz	50 Ohms	50 Ohms	Copper	SMA Jack
Amphenol Custom Cable Q-2U01P0001002M	78.7 in	2 m	SMA to MMCX	MMCX Plug	RG-178	Male	Panel Mount	Free Hanging (In-Line)	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	3 GHz	50 Ohms	50 Ohms	Copper	SMA Jack	6.6 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MMCX RG-178 9.000" (228.60mm)

Technical documentation and resources

No documents available
