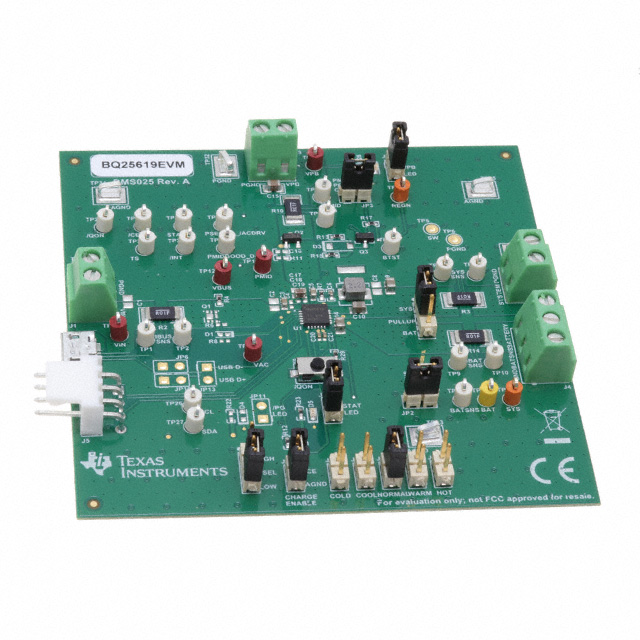

BQ25619EVM
ActivePOWER MANAGEMENT IC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25619EVM | BQ25619 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 - 4.52 V |
| Charge Current - Max | - | 1.5 - 1.8 A |
| Current - Charging | - | Constant - Programmable |
| Fault Protection | - | Over Current, Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-WFQFN Exposed Pad |
| Programmable Features | - | Current, Voltage |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-WQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25619 | BQ25619 |
| Voltage - Supply (Max) | - | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ25619 Series
I2C controlled 1.5-A single cell buck battery charger with 20-mA termination and 1-A boost
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Mounting Type | Current - Charging | Supplier Device Package | Voltage - Supply (Max) [Max] | Charge Current - Max [Max] | Battery Chemistry | Programmable Features | Interface | Package / Case | Number of Cells | Battery Pack Voltage | Function | Utilized IC / Part | Type | Supplied Contents | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25619RTWR | 85 °C | -40 °C | Over Current, Over Temperature, Over Voltage | Surface Mount | Constant - Programmable | 24-WQFN (4x4) | 13.5 V | 1.5 A | Lithium Ion/Polymer | Current | I2C | 24-WFQFN Exposed Pad | 1 | 4.2 V | |||||
Texas Instruments BQ25619ERTWR | 85 °C | -40 °C | Over Current, Over Temperature, Over Voltage | Surface Mount | Constant - Programmable | 24-WQFN (4x4) | 13.5 V | 1.8 A | Lithium Ion/Polymer | Current, Voltage | I2C | 24-WFQFN Exposed Pad | 1 | 4.52 V | |||||
Texas Instruments BQ25619EVM | Battery Charger | BQ25619 | Power Management | Board(s) | I2C Interface(s) |
Description
General part information
BQ25619 Series
The BQ25618/619 integrates charge, boost converter and voltage protection in a single device. It offers the industry’s lowest termination current for switching chargers to charge wearable devices by full battery capacity. The BQ25618/619 best-in-class low quiescent current reduces battery leakage down to 6uA in Ship mode, which conserves battery energy to double the shelf life for the device. The BQ25619 is in a 4mm × 4mm QFN package for easy layout. The BQ25618 is in a 2.0mm × 2.4mm WCSP package for space limited design.
The BQ25618/619 integrates charge, boost converter and voltage protection in a single device. It offers the industry’s lowest termination current for switching chargers to charge wearable devices by full battery capacity. The BQ25618/619 best-in-class low quiescent current reduces battery leakage down to 6uA in Ship mode, which conserves battery energy to double the shelf life for the device. The BQ25619 is in a 4mm × 4mm QFN package for easy layout. The BQ25618 is in a 2.0mm × 2.4mm WCSP package for space limited design.
