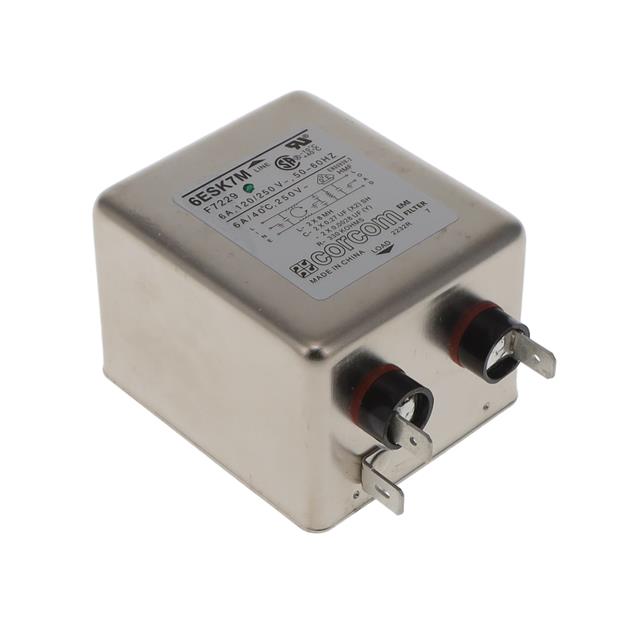

6ESK7M
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
6ESK7M
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6ESK7M |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Termination Style | Quick Connect, IEC 320-C14 |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.83 | |
| 10 | $ 30.98 | |||
Description
General part information
6ESK Series
Single Phase EMC/EMI Line Filter 6 A 250V 50/60Hz Single Stage IEC 320-C14, Quick Connect
Documents
Technical documentation and resources
