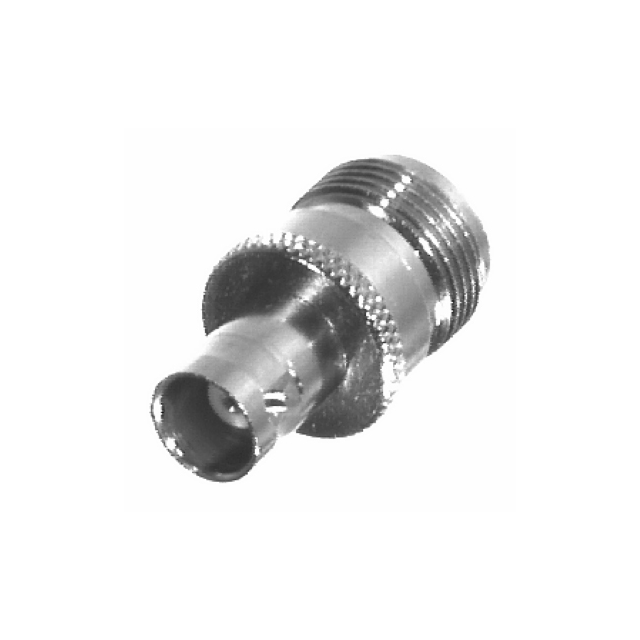

RFN-1039-1

Active

RF Industries

N FEMALE-BNC FEMALE

Search across all available documentation for this part.

Active

RF Industries

N FEMALE-BNC FEMALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1039-1

Adapter Series	BNC to N
Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Center Contact Plating	Body Material	Center Contact Material	Adapter Series	Fastening Type	Convert From (Adapter End)	Conversion Type	Convert To (Adapter End)	Impedance	Center Gender	Adapter Type	Frequency - Max [Max]	Mounting Type	Body Finish	Dielectric Material	Style
RF Industries RFN-1039-1	Gold	Brass	Brass	BNC to N	Bayonet Lock Threaded	Female Socket N Jack	Between Series	BNC Jack Female Socket	50 Ohms	Female to Female	Jack to Jack	4 GHz	Free Hanging (In-Line)	Silver	Polytetrafluoroethylene (PTFE)	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector N Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
