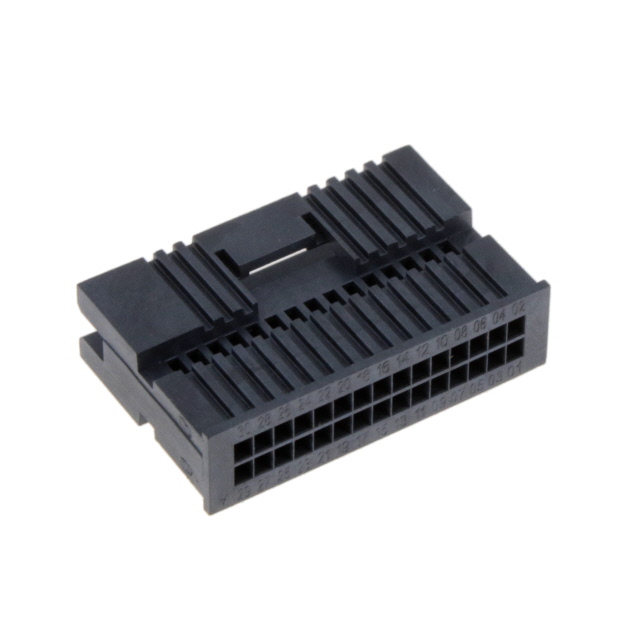

TSDF-15-D-S-L
ActiveSamtec Inc.
CONN HSG 30POS 1.27MM TIGER EYE
Deep-Dive with AI
Search across all available documentation for this part.
TSDF-15-D-S-L
ActiveSamtec Inc.
CONN HSG 30POS 1.27MM TIGER EYE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSDF-15-D-S-L |
|---|---|
| Color | Black |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.71 | |
| 10 | $ 2.83 | |||
| 25 | $ 2.55 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.19 | |||
| 250 | $ 1.99 | |||
| 500 | $ 1.85 | |||
| 1000 | $ 1.76 | |||
Description
General part information
TSDF-15 Series
30 Rectangular Connectors - Housings Black 0.050" (1.27mm)
