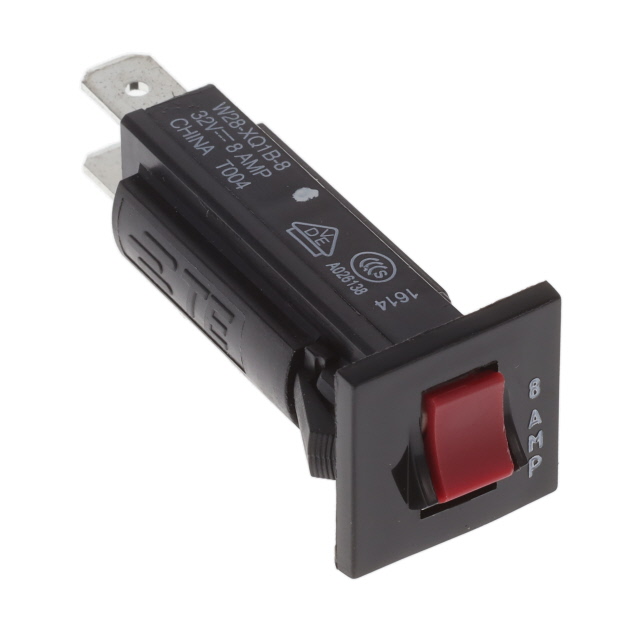

W28-XQ1B-8 - W28-XQ1B-8

W28-XQ1B-8

Active

TE Connectivity Potter & Brumfield Relays

CIR BRKR THRM 8A 250VAC 32VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.77
		5	$ 5.56
		10	$ 5.35
		50	$ 4.12
		100	$ 3.63

Description

General part information

W28 Series

Circuit Breaker Thermal 8A 250 V AC 32 V DC Push to Reset Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W28-XQ1B-8	W28 Series

Actuator Type	Push to Reset	Push to Reset
Breaker Type	Thermal	Thermal
Current Rating (Amps)	8 A	0.25 - 750 A
Number of Poles	1	1
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	32 V	32 V

W28 Series

CIR BRKR THRM

Part	Breaker Type	Number of Poles	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Current Rating (Amps)
TE Connectivity Potter & Brumfield Relays W28-X1015-3.70	Thermal	1	250 V	Push to Reset	32 V	3.7 A
TE Connectivity Potter & Brumfield Relays W28-XQ1A-0.25	Thermal	1	250 V	Push to Reset	32 V	0.25 A
TE Connectivity Potter & Brumfield Relays W28-XT1A-15	Thermal	1	250 V	Push to Reset	32 V	15 A
TE Connectivity Potter & Brumfield Relays W28-XQ1A-13	Thermal	1	250 V	Push to Reset	32 V	13 A
TE Connectivity Potter & Brumfield Relays W28-XQ1B-8	Thermal	1	250 V	Push to Reset	32 V	8 A
TE Connectivity Potter & Brumfield Relays W28-XQ4D-8	Thermal	1	250 V	Push to Reset	32 V	8 A
TE Connectivity Potter & Brumfield Relays W28-XT1A-12	Thermal	1	250 V	Push to Reset	32 V	12 A
TE Connectivity Potter & Brumfield Relays W28-XQ1A-0.50	Thermal	1	250 V	Push to Reset	32 V	0.5 A
TE Connectivity Potter & Brumfield Relays W28-XQ1A-11	Thermal	1	250 V	Push to Reset	32 V	11 A
TE Connectivity Potter & Brumfield Relays W28-X1066-15	Thermal	1	250 V	Push to Reset	32 V	15 A
