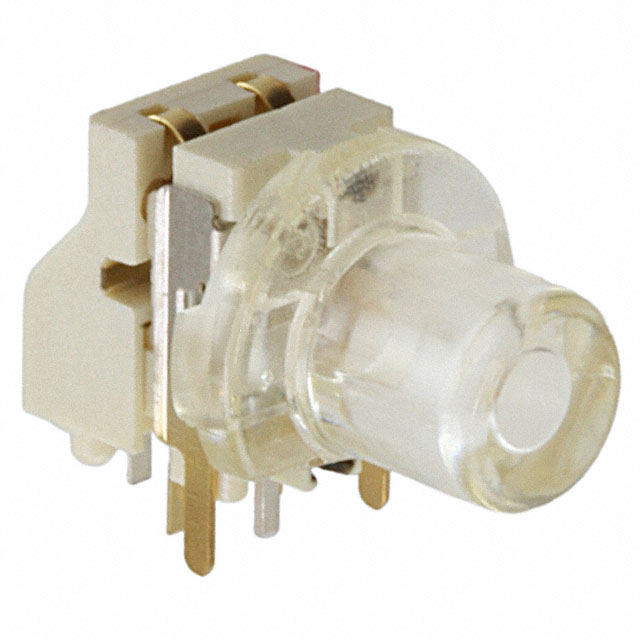

TL1270F160BLQBT

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL1270F160BLQBT

Actuator Length, Right Angle	6.62 mm
Actuator Orientation	Side Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Illuminated
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	3.6 VDC
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.5 mm
Outline [y]	4.95 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

Part	Illumination Type, Color	Actuator Length, Right Angle	Illumination Voltage (Nominal)	Circuit	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Illumination	Mechanical Life	Switch Travel	Outline [x]	Outline [y]	Mounting Type	Contact Rating @ Voltage	Termination Style	Actuator Orientation
E-Switch TL1270F160BLQBT	Blue LED	6.62 mm	3.6 VDC	SPST-NO	Off-Mom	85 °C	-40 °C	Round Button	Illuminated	100000 Cycles	0.2 mm	4.5 mm	4.95 mm	Through Hole Right Angle	0.05 A 12 VDC	PC Pin	Side Actuated
E-Switch TL1270F160REQAT	LED Red	5.62 mm	3.6 VDC	SPST-NO	Off-Mom	85 °C	-40 °C	Round Button	Illuminated	100000 Cycles	0.2 mm	4.5 mm	4.95 mm	Through Hole Right Angle	0.05 A 12 VDC	PC Pin	Side Actuated
E-Switch TL1270F160GYQBT	Green LED Yellow	6.62 mm	2.3 VDC	SPST-NO	Off-Mom	85 °C	-40 °C	Round Button	Illuminated	100000 Cycles	0.2 mm	4.5 mm	4.95 mm	Through Hole Right Angle	0.05 A 12 VDC	PC Pin	Side Actuated
E-Switch TL1270F160GYQAT	Green LED Yellow	5.62 mm	2.3 VDC	SPST-NO	Off-Mom	85 °C	-40 °C	Round Button	Illuminated	100000 Cycles	0.2 mm	4.5 mm	4.95 mm	Through Hole Right Angle	0.05 A 12 VDC	PC Pin	Side Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1200	$ 3.77

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
