M3AEK-1036J
Active3M
IDC CABLE - MSC10K/MC10G/MCE10K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3AEK-1036J | M3AEK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Card Edge | Socket to Card Edge |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3 ft |
| Length [x] | 914.4 mm | 457.2 - 914.4 mm |
| Number of Positions | 10 | 10 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3AEK Series
IDC CABLE - MSC10K/MC10G/MCE10K
| Part | Length [x] | Length [x] | Cable Termination | Number of Positions | Pitch - Cable | Pitch - Cable | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Contact Finish | Connector Type | Shielding | Length | Length | Length | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3 ft | 914.4 mm | IDC | 10 | 0.05 " | 1.27 mm | 2 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Socket to Card Edge | Unshielded | |||||
IDC | 10 | 0.05 " | 1.27 mm | 2 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Socket to Card Edge | Unshielded | 152.4 mm | 6 " | 0.5 ' | ||||
IDC | 10 | 0.05 " | 1.27 mm | 2 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Socket to Card Edge | Unshielded | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | |||
3 ft | 914.4 mm | IDC | 10 | 0.05 " | 1.27 mm | 2 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Socket to Card Edge | Unshielded | Multiple, Ribbon | ||||
1.5 ft | 457.2 mm | IDC | 10 | 0.05 " | 1.27 mm | 2 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | Socket to Card Edge | Unshielded | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M3AEK Series

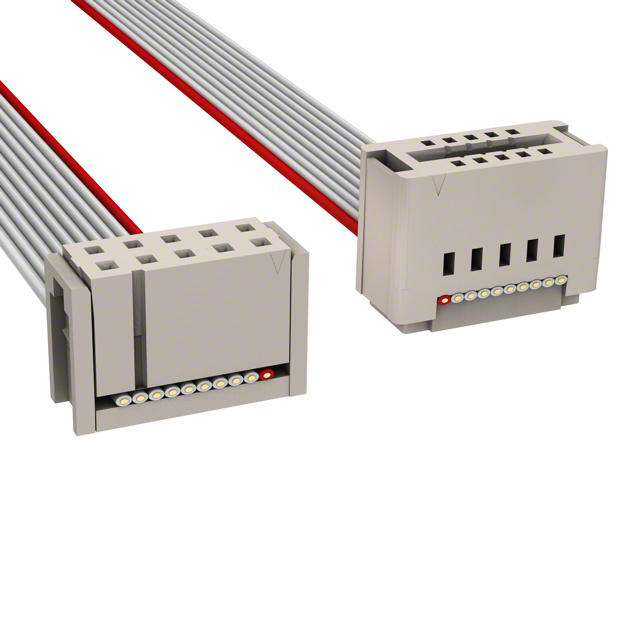

10 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
