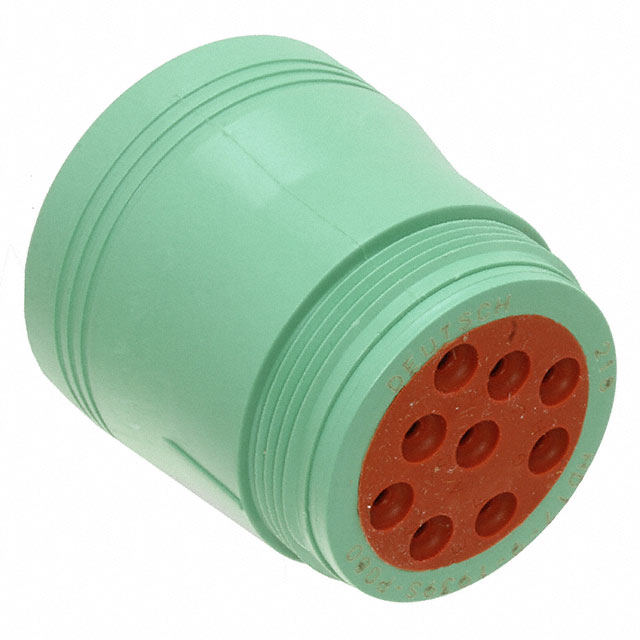

HD17-9-1939S-P080
ActiveTE Connectivity Raychem Cable Protection
PLUG ASM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD17-9-1939S-P080 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Green |
| Insert Material | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Orientation | Keyed |
| Shell Size - Insert | 9-1939 |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 21.96 | |
| 10 | $ 19.23 | |||
| 25 | $ 18.40 | |||
| 50 | $ 17.80 | |||
| 100 | $ 17.21 | |||
| 250 | $ 16.26 | |||
| 500 | $ 15.78 | |||
Description
General part information
HD17 Series
9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
