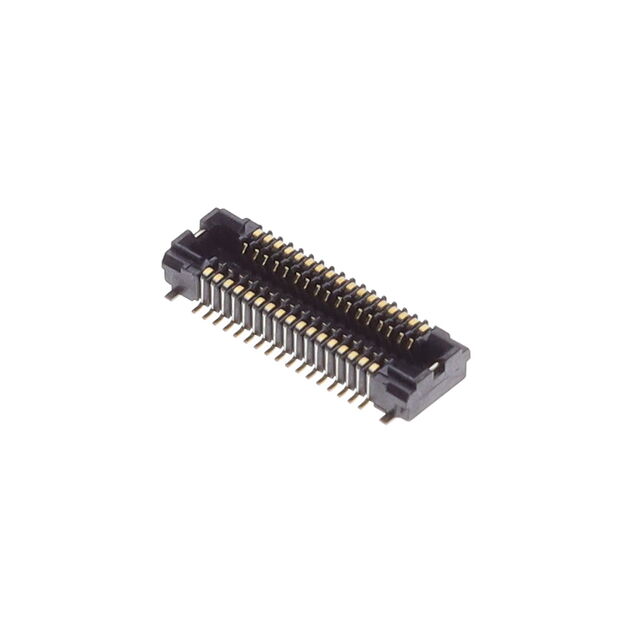

AXF5G3412A

Active

Panasonic Electric Works

CONN SOCKET 34POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 34POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5G3412A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	34
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Features	Number of Positions	Mated Stacking Heights	Mounting Type	Number of Rows	Height Above Board [z]	Height Above Board [z]	Connector Type	Pitch [x]	Pitch [x]
Panasonic Electric Works AXF5G3412A	Gold	Solder Retention	34	1.5 mm	Surface Mount	2	0.057 in	1.45 mm	Socket Center Strip Contacts	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Connector Socket, Center Strip Contacts Surface Mount Gold
