6772415334F

Active

DIALIGHT

7MM HB/B PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HB/B PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6772415334F	6772415 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Blue	Blue
Millicandela Rating	730 mcd	730 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	25 °
Voltage	12 V	6 - 12 V

7MM HB/B PMI-12VDC W/O-RING

Part	Current	Ratings	Type	Panel Cutout Shape	Ingress Protection	Millicandela Rating	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle
DIALIGHT 6772415334F	30 mA	DC	LED	Round	IP66, NEMA 4X	730 mcd	Blue	7.11 mm	0.28 "	12 V
DIALIGHT 6772415324F	30 mA	DC	LED	Round	IP66, NEMA 4X		Blue			6 V	7.2 mm	0.28 in	25 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	125	$ 6.67

General part information

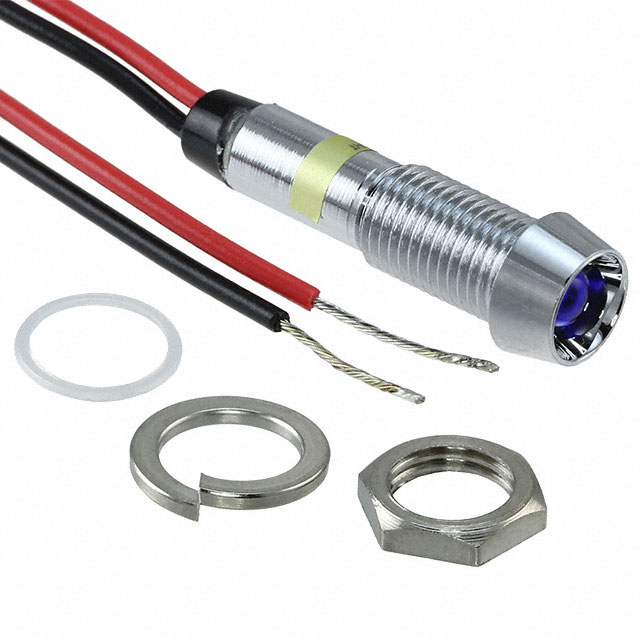

LED Panel Indicator Blue 12V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
