357-076-422-268
ActiveEDAC Inc.

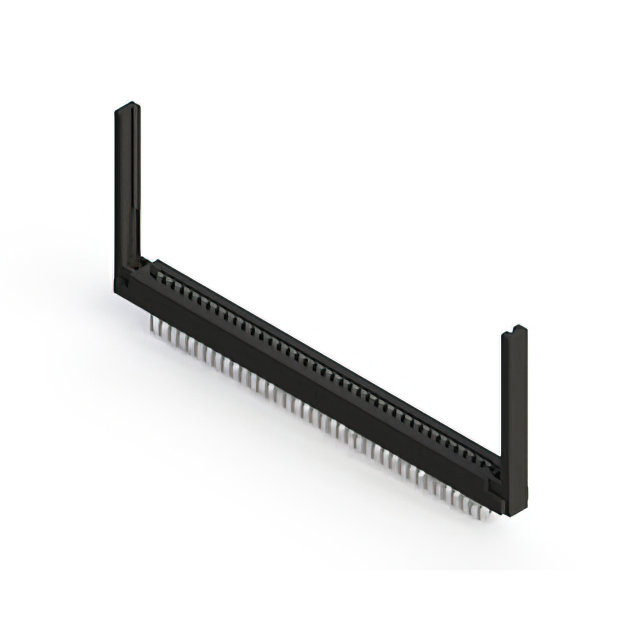

CARD EDGE CONNECTOR, 76 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.344, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-076-422-268
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 76 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.344, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-076-422-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
357-076 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Type | Mounting Type | Termination Rows | Material - Insulation | Features | Contact Material | Card Type | Color | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Number of Positions | Read Out | Termination | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 38 | Semi Bellows | Board Edge Straddle Mount | 2 | Polyester Thermoplastic | Card Extender | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Tin | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | 76 | Dual | Solder Eyelet(s) | 0.156 in | 3.96 mm | ||
EDAC Inc. | 38 | Semi Bellows | Through Hole | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Female | 76 | Dual | Solder | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | |
EDAC Inc. | 38 | Semi Bellows | Through Hole | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Tin | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 76 | Dual | Wire Wrap | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 38 | Semi Bellows | Board Edge Straddle Mount | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Tin | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | 76 | Dual | Solder | 0.156 in | 3.96 mm | |||
EDAC Inc. | 38 | Semi Bellows | Through Hole Right Angle | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Female | 76 | Dual | Solder Wire Wrap | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | |
EDAC Inc. | 38 | Semi Bellows | Board Edge Straddle Mount | 2 | Polyester Thermoplastic | Card Extender | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Female | 76 | Dual | Solder | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 38 | Semi Bellows | Through Hole | 2 | Polyester Thermoplastic | Card Guides | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Tin | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 76 | Dual | Solder | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 38 | Semi Bellows | Through Hole | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Tin | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | 76 | Dual | Solder | 0.156 in | 3.96 mm | |||
EDAC Inc. | 38 | Semi Bellows | Through Hole | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Tin | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 76 | Dual | Solder | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 38 | Semi Bellows | Through Hole | 2 | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Black | 2 | Tin | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 76 | Dual | Solder Eyelet(s) | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 19.08 | |
Description
General part information
357-076 Series
76 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
