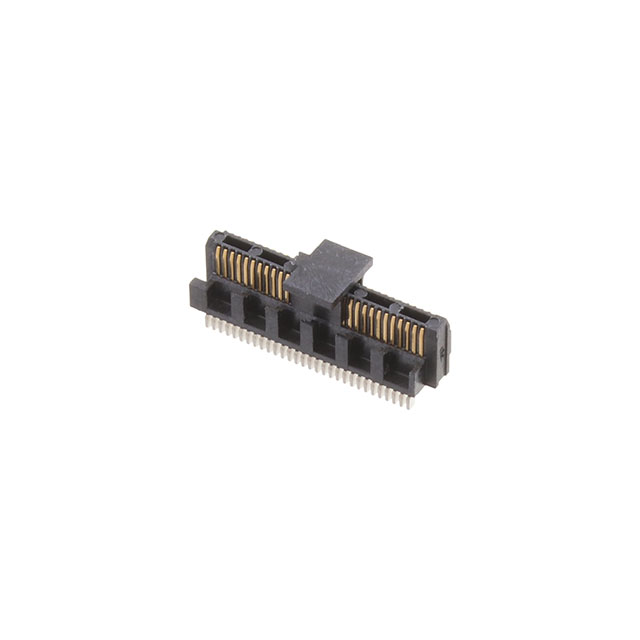

ST4-30-2.50-L-D-P-TR - ST4-30-2.50-L-D-P-TR

ST4-30-2.50-L-D-P-TR

Active
Samtec Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet0.40 mm Micro Blade & Beam Ultra Fine Pitch Header+1
ST4-30-2.50-L-D-P-TR - ST4-30-2.50-L-D-P-TR

ST4-30-2.50-L-D-P-TR

Active
Samtec Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet0.40 mm Micro Blade & Beam Ultra Fine Pitch Header+1

Technical Specifications

Parameters and characteristics for this part

SpecificationST4-30-2.50-L-D-P-TR
Connector TypeHeader, Center Strip Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place
Height Above Board4.57 mm
Height Above Board0.18 in
Mated Stacking Heights5.5 mm, 6 mm
Mounting TypeSurface Mount
Number of Positions60
Number of Rows2
Pitch [x]0.016 in
Pitch [x]0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 4.16
50$ 3.81
100$ 3.58
250$ 3.22
Digi-Reel® 1$ 4.16
50$ 3.81
100$ 3.58
250$ 3.22
Tape & Reel (TR) 850$ 2.82
1700$ 2.55

Description

General part information

ST4-30 Series

60 Position Connector Header, Center Strip Contacts Surface Mount Gold
