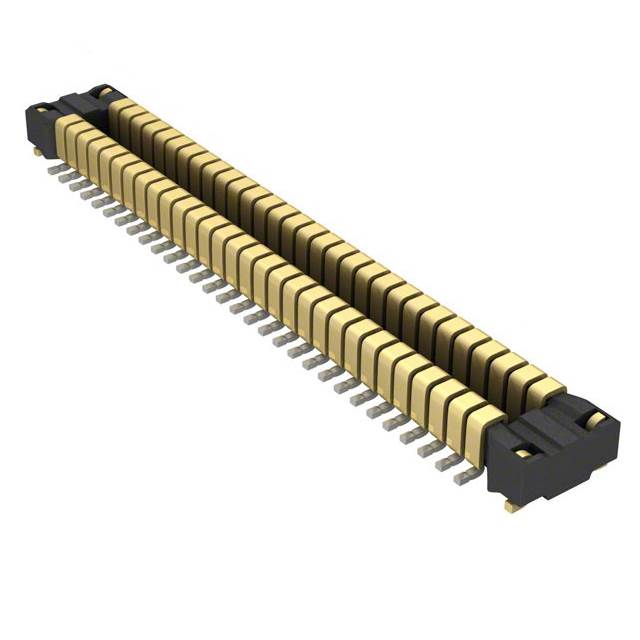

AXT460154

Active

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT460154

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Features	Connector Type	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Number of Rows	Mated Stacking Heights	Number of Positions
Panasonic Electric Works AXT460154	0.016 in	0.4 mm	Board Guide Solder Retention	Header Center Strip Contacts	0.049 in	1.25 mm	Gold	Surface Mount	2	1.5 mm 2.5 mm	60
Panasonic Electric Works AXT460314	0.016 in	0.4 mm	Board Guide Solder Retention	Header Center Strip Contacts	0.088 "	2.23 mm	Gold	Surface Mount	2	3 mm	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 9.32

General part information

60 Position Connector Header, Center Strip Contacts Surface Mount Gold
