R143780000

Active

Radiall USA, Inc.

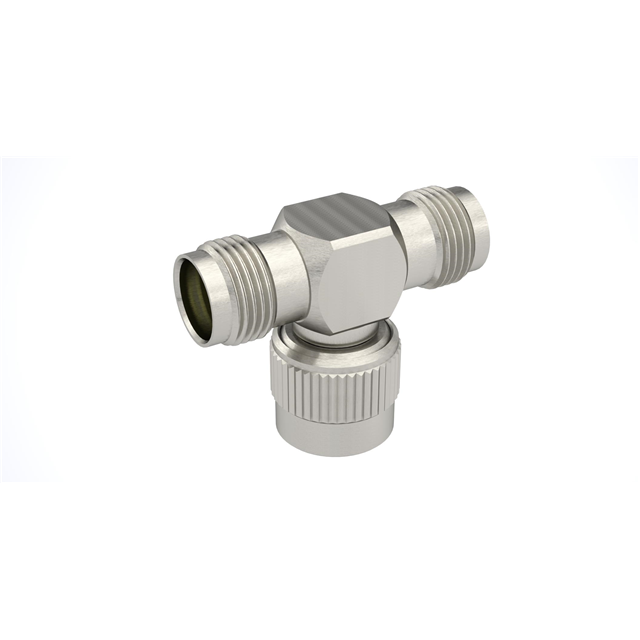

TNC / TEE FEMALE-FEMALE/MALE ADA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / TEE FEMALE-FEMALE/MALE ADA

Technical Specifications

Parameters and characteristics for this part

Specification	R143780000

Adapter Series	TNC to TNC, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert To (Adapter End)	TNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

Part	Style	Convert To (Adapter End)	Center Gender	Adapter Type	Center Contact Material	Frequency - Max [Max]	Convert From (Adapter End)	Impedance	Mating Cycles	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Conversion Type	Center Contact Plating	Adapter Series	Mounting Type
Radiall USA, Inc. R143782000	T-Shape	Female Socket (2) TNC Jack	Female to Female	Jack to Jack	Beryllium Copper	11 GHz	TNC Jack Female Socket	50 Ohms	500	Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Same Series	Gold	TNC to TNC Dual	Free Hanging (In-Line)
Radiall USA, Inc. R143780000	T-Shape	Female Socket (2) TNC Jack		Plug to Jack	Beryllium Copper Brass	11 GHz		50 Ohms	500	Nickel	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Same Series	Gold	TNC to TNC Dual	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 114.72

General part information

Adapter Coaxial Connector TNC Plug, Male Pin To TNC Jack, Female Socket (2) 50 Ohms
