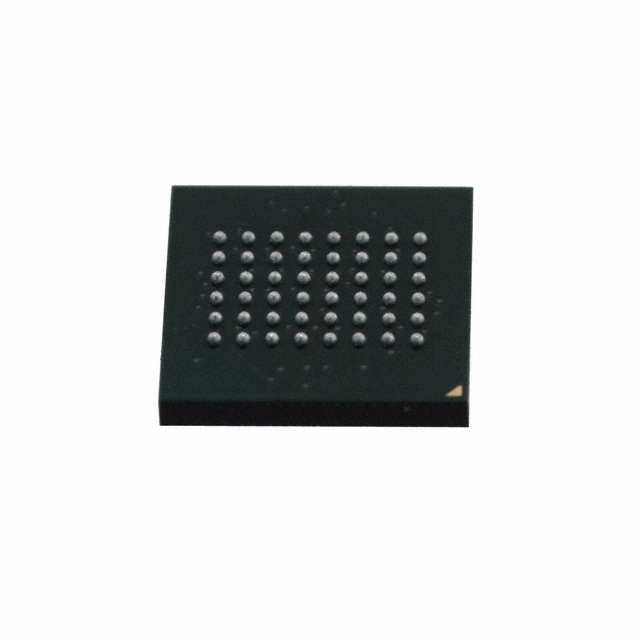

MR4A08BMA35
ActiveEverspin Technologies Inc.
MRAM 16MBIT PARALLEL INTERFACE 3.3V 48-PIN FBGA TRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MR4A08BMA35
ActiveEverspin Technologies Inc.
MRAM 16MBIT PARALLEL INTERFACE 3.3V 48-PIN FBGA TRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MR4A08BMA35 | MR4A08 Series |
|---|---|---|
| Access Time | 35 ns | 35 - 45 ns |
| Memory Format | RAM | RAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 2 M | 2 M |
| Memory Size | 16 Mb | 16 Mb |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 125 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | 48-LFBGA | 44-TSOP, 48-LFBGA |
| Package / Case | - | 10.16 mm |
| Package / Case | - | 10.16 mm |
| Supplier Device Package | 48-FBGA (10x10) | 44-TSOP2, 48-FBGA (10x10) |
| Technology | MRAM (Magnetoresistive RAM) | MRAM (Magnetoresistive RAM) |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
| Write Cycle Time - Word, Page | 35 ns | 35 ns |
| Write Cycle Time - Word, Page | - | 45 ns |
| Write Cycle Time - Word, Page | - | 45 ns |
MR4A08 Series
IC RAM 16MBIT PARALLEL 44TSOP2
| Part | Write Cycle Time - Word, Page [custom] | Write Cycle Time - Word, Page [custom] | Memory Organization | Access Time | Technology | Mounting Type | Memory Type | Memory Format | Memory Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Package / Case | Package / Case | Memory Size | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Write Cycle Time - Word, Page |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Everspin Technologies Inc. MR4A08BUYS45R | 45 ns | 45 ns | 2 M | 45 ns | MRAM (Magnetoresistive RAM) | Surface Mount | Non-Volatile | RAM | Parallel | 3.6 V | 3 V | 10.16 mm | 10.16 mm | 44-TSOP | 16 Mb | -40 °C | 125 °C | 44-TSOP2 | |
Everspin Technologies Inc. MR4A08BCMA35R | 2 M | 35 ns | MRAM (Magnetoresistive RAM) | Surface Mount | Non-Volatile | RAM | Parallel | 3.6 V | 3 V | 48-LFBGA | 16 Mb | -40 °C | 85 °C | 48-FBGA (10x10) | 35 ns | ||||
Everspin Technologies Inc. MR4A08BYS35 | 2 M | 35 ns | MRAM (Magnetoresistive RAM) | Surface Mount | Non-Volatile | RAM | Parallel | 3.6 V | 3 V | 10.16 mm | 10.16 mm | 44-TSOP | 16 Mb | 0 °C | 70 °C | 44-TSOP2 | 35 ns | ||
Everspin Technologies Inc. MR4A08BCYS35 | 2 M | 35 ns | MRAM (Magnetoresistive RAM) | Surface Mount | Non-Volatile | RAM | Parallel | 3.6 V | 3 V | 10.16 mm | 10.16 mm | 44-TSOP | 16 Mb | -40 °C | 85 °C | 44-TSOP2 | 35 ns | ||
Everspin Technologies Inc. MR4A08BMA35 | 2 M | 35 ns | MRAM (Magnetoresistive RAM) | Surface Mount | Non-Volatile | RAM | Parallel | 3.6 V | 3 V | 48-LFBGA | 16 Mb | 0 °C | 70 °C | 48-FBGA (10x10) | 35 ns | ||||
Everspin Technologies Inc. MR4A08BYS35R | 2 M | 35 ns | MRAM (Magnetoresistive RAM) | Surface Mount | Non-Volatile | RAM | Parallel | 3.6 V | 3 V | 10.16 mm | 10.16 mm | 44-TSOP | 16 Mb | 0 °C | 70 °C | 44-TSOP2 | 35 ns | ||
Everspin Technologies Inc. MR4A08BUYS45 | 45 ns | 45 ns | 2 M | 45 ns | MRAM (Magnetoresistive RAM) | Surface Mount | Non-Volatile | RAM | Parallel | 3.6 V | 3 V | 10.16 mm | 10.16 mm | 44-TSOP | 16 Mb | -40 °C | 125 °C | 44-TSOP2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 50.13 | |
| 10 | $ 44.50 | |||
| 25 | $ 42.43 | |||
| 40 | $ 41.41 | |||
| 80 | $ 39.94 | |||
| 230 | $ 37.79 | |||
Description
General part information
MR4A08 Series
MRAM (Magnetoresistive RAM) Memory IC 16Mbit Parallel 35 ns 48-FBGA (10x10)
