FLVDDF2-250A(S)K
ActiveJST Sales America Inc.
CONN QC RCPT 14-16AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
FLVDDF2-250A(S)K
ActiveJST Sales America Inc.
CONN QC RCPT 14-16AWG 0.250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FLVDDF2-250A(S)K |
|---|---|
| Color | Blue |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [diameter] | 4.29 mm |
| Insulation Diameter [diameter] | 0.169 in |
| Length - Overall [x] | 0.827 in |
| Length - Overall [x] | 21 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 7.8 mm |
| Tab Length | 0.307 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.18 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
Description
General part information
FLVDDF2 Series

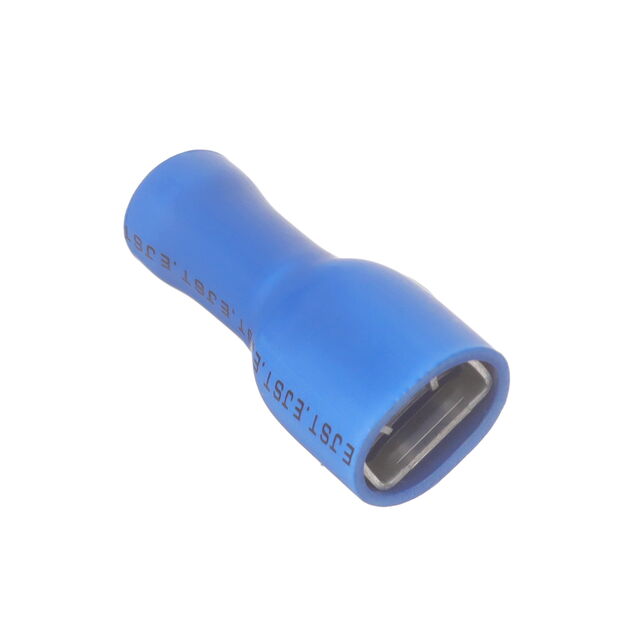

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
