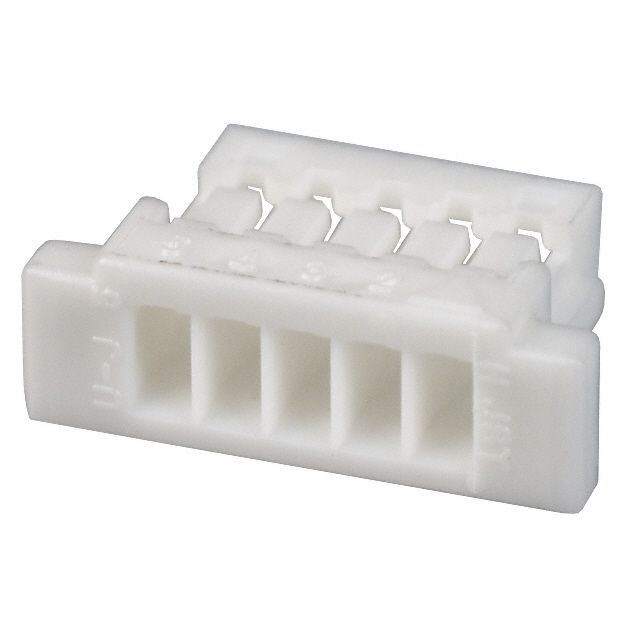

SHR-05V-S-B

Active

JST Sales America Inc.

CONN RCPT HSG 5POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 5POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHR-05V-S-B

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Color	Insulation Material	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Contact Type	Contact Termination
JST Sales America Inc. SHR-05V-S	Natural	Polybutylene Terephthalate (PBT)	Contacts Not Included	-25 °C	85 °C	Free Hanging (In-Line)	0.039 in	1 mm	Receptacle	1	Female Socket	Crimp
JST Sales America Inc. SHR-05V-S-B	Natural	Polybutylene Terephthalate (PBT)	Contacts Not Included	-25 °C	85 °C	Free Hanging (In-Line)	0.039 in	1 mm	Receptacle	1	Female Socket	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
